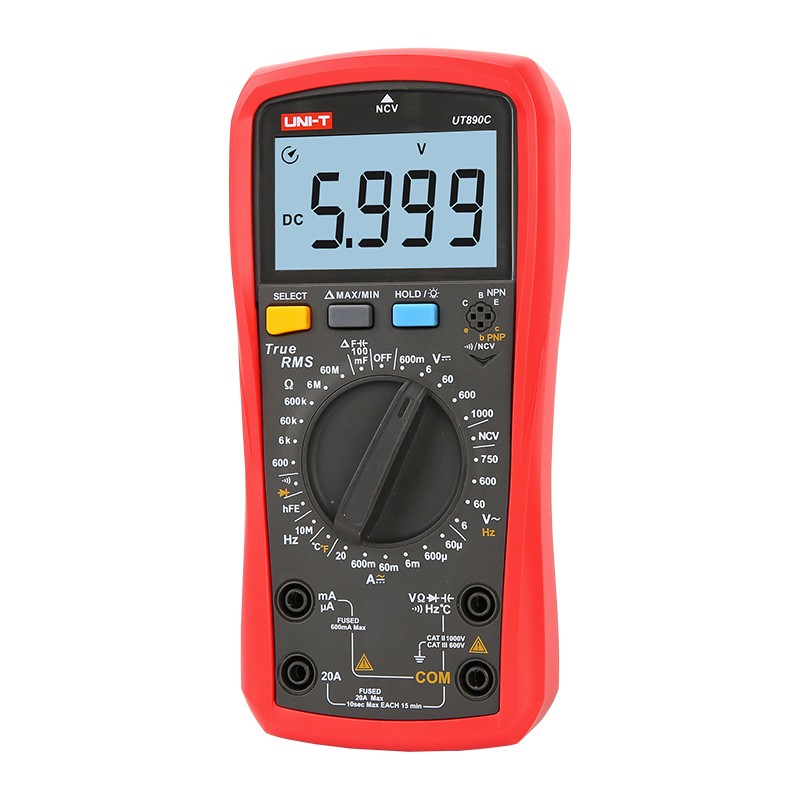

UT890C Digital Multimeter True RMS

: FER02039
€27.90
Tax included

The UT890C 6000-count true RMS digital multimeters are designed with large LCD display.

The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Documents:



Specification Range UT890C
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3)
ACV Frequency 10Hz～10kHz ±（0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF ±(3%+10)
Frequency 9.999Hz～9.999MHz ±(1.0%+5)
Temperatue –40℃～1000℃/–40°F～1832°F
±(1.5%+5)
Fetures
Display Count 　 6000
Manual Range 　 √
NCV 　 √
hFE 　 √
Diode Test 　 √
Continuity Test 　 √
True RMS 　 √
Fuse blowing alarm  　 √
Acousto-optic indication(NCV/continuity) 　 √
High voltage false detection 1000Vrms √
Current (AC/DC) mode memory  　 √
Over-current alarm ≥20A √
Low Battery Indication ≤2.5V √
Data Hold 　 √
REL 　 √
Max/Min V 、A   √
Auto  Power Off 15Min √
Back light 30s √
Operation Temperature 0℃～40℃
Safety CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power 1.5V x 2
Product color Red and Gray
Product Net Weight 346g
Product Size 183mm x 88mm x 56mm
Standard Individual Packing Gift Box, Manual
Standard Quantity Per Carton 40pcs
Standard carton measurement 690mm x 450mm x 340mm
Standard carton gross weight 23Kg
FER02039
