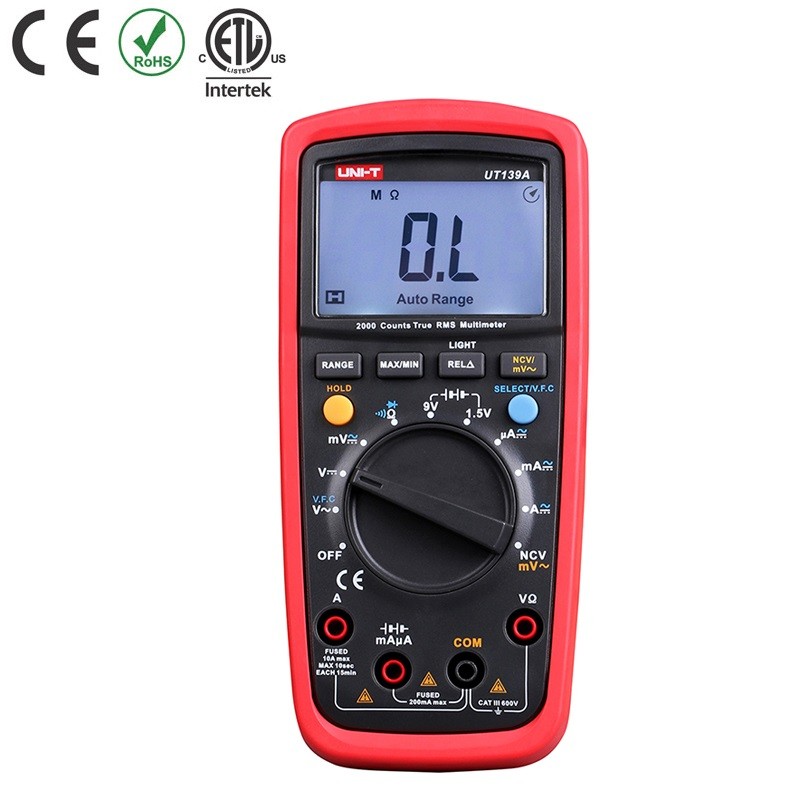

Palm-Size Digital Multimeter - UNI-T...
- DISCONTINUED
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
Specifications | Range | UT139A |
DC voltage (V) | 600V | ±(0.5%+2) |
AC voltage (V) | 600V | ±(1%+3) |
DC current (A) | 10A | ± (0.7%+2) |
AC current (A) | 10A | ±(1%+3) |
Resistance (Ω) | 20MΩ | ±(1%+2) |
Features | ||
Display count | 2000 | |
Auto range/Manual range /True RMS |
√ | |
Bandwidth (Hz) | 45Hz~400Hz | |
NCV/Continuity buzzer | √ | |
Diode | Around 2V | |
General Characteristics | ||
Power | 1.5V battery (R6) x 2 | |
Display | 58mm x 36mm | |
Product color | Red and grey | |
Product net weight | 354g | |
Product size | 170mm x 80mm x 48mm | |
Standard accessories | UT139A/B: Batteries, test leads | |
Standard individual packing | Gift box, English manual | |
Standard quantity per carton | 20pcs | |
Standard carton measurement | 450mm x 330mm x 340mm | |
Standard carton gross weight | 12.2kg |
