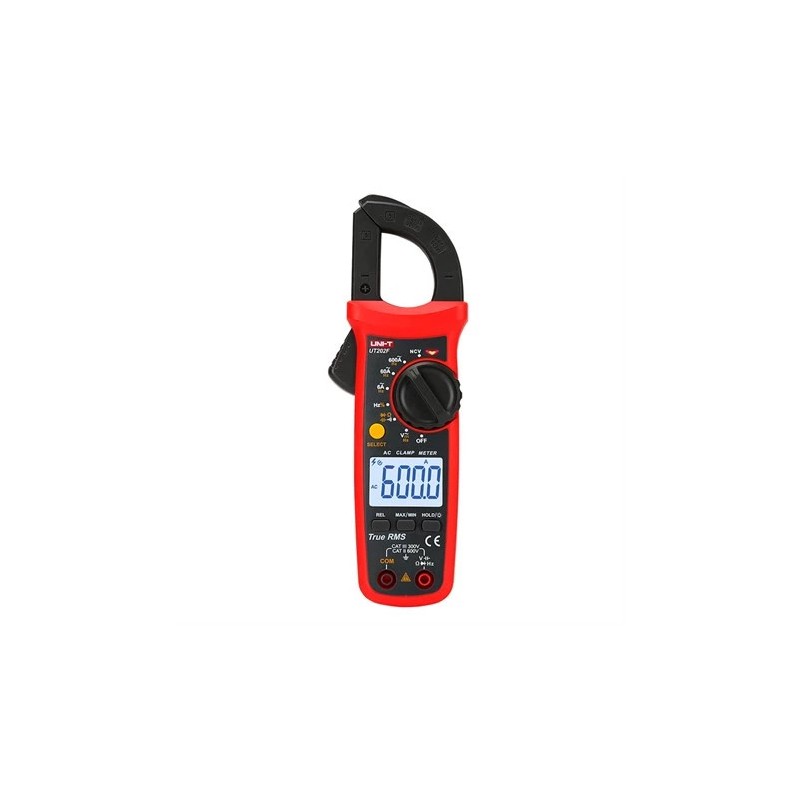

Multimeter with Clamp Meter (600Aac 600Vac/dc 60MΩ Cap. Hz T-RMS Auto-Range Min/Max NCV) - Uni-T UT202F
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
MEASUREMENT SCALES:
- DC voltage (V): 600V ± (0.5% + 2)
- AC voltage (V): 600V ± (0.8% + 5)
- AC voltage frequency (Hz): 10Hz ~ 10kHz ± (1% + 5)
- AC Current (A): 0.06 ~ 600A ± (2% + 10)
- AC current frequency (Hz): 50Hz ~ 100Hz ± (1% + 5)
- Resistance (Ω): 60MΩ ± (0.8% + 2)
- Capacitance (F): 60mF ± (4% + 5)
- Frequency (Hz): 10Hz ~ 10MHz ± (1% + 5)
FEATURES:
- Automatic change of measuring scale
- True RMS
- NCV (non-contact voltage detection)
- Diode Test
- Checking circuit continuity
- Relative mode
- Freezing reading
- Maximum/minimum value indication
- LCD screen with backlight
- Low battery indication
- Automatic shutdown
GENERAL FEATURES:
- Jaw opening: 28mm
- Maximum reading: 6000
- Power: 1.5 V batteries (R03) x 2
- Screen: 37 mm x 25 mm
- Color: Red and gray
- Weight: 248g
- Dimensions: 215 mm x 63 mm x 36 mm
- Standard accessories: batteries, probes, carrying bag
