- DISCONTINUED
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
If you have any questions on this product please feel free to contact us. *Disclaimer: The images are merely illustrative.
Specifications | Range | Best Accuracy |

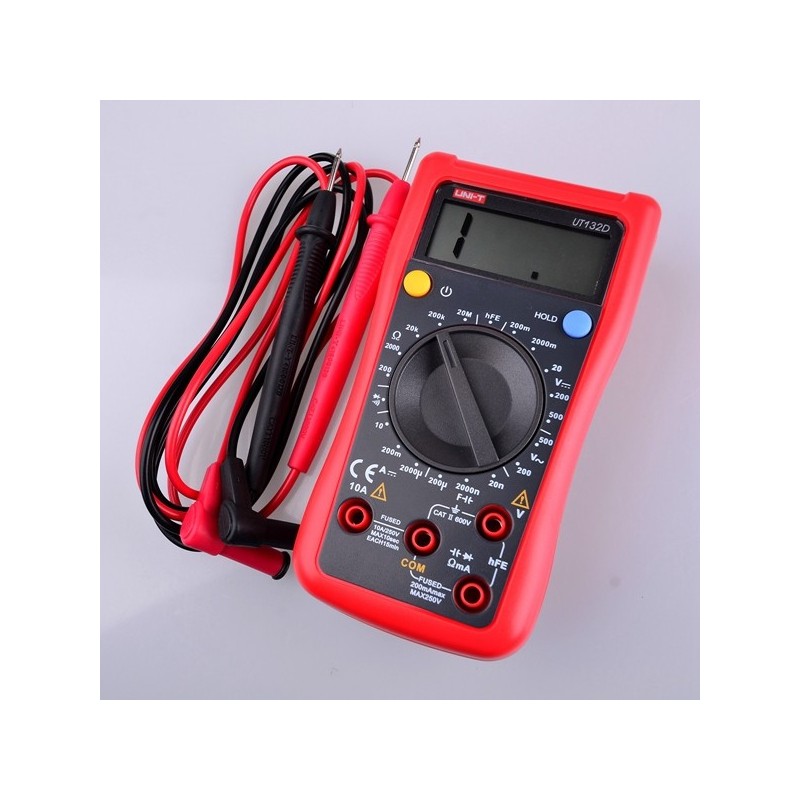

Model | UT132D | |
DC Voltage (V) | 200mV/ 2000mV/ 20V/ 200V/ 600V | ±(0.5%+2) |
AC Voltage (V) | 200V/600V | ±(1.2%+3) |
DC Current (A) | 2000μA/ 20mA/ 200mA/10A | |
2000μA/ 200mA/10A | ±(1%+2) | |
Resistance (Ω) | 200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 2000kΩ/ 20MΩ | |
200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 20MΩ | ±(0.8%+5) | |
Capacitance (F) | 20nF/ 2000nF/ 200μF | ±(4%+3) |
Temperature (°C) | -40 °C ~ 1000°C | |
Features | ||
Display Count | 2000 | |
Manual Range | √ | |
Diode | √ | |
Transistor | √ | |
Continuity Buzzer | √ | |
Low Battery Indication | √ | |
Data Hold | √ | |
Input Impedance for DCV | Around 10MΩ | √ |
General Characteristics | ||
Power | 9V Battery (6F22) | |
LCD Size | 49mm x 18mm | |
Product Color | Red and grey | |
Product Net Weight | 200g | |
Product Size | 72mm × 137mm × 35mm | |
Standard Accessories | UT132C-Battery, test lead, multi-purpose socket, point contact temperature probe | |
UT132D-Battery, test lead, multi-purpose socket |
