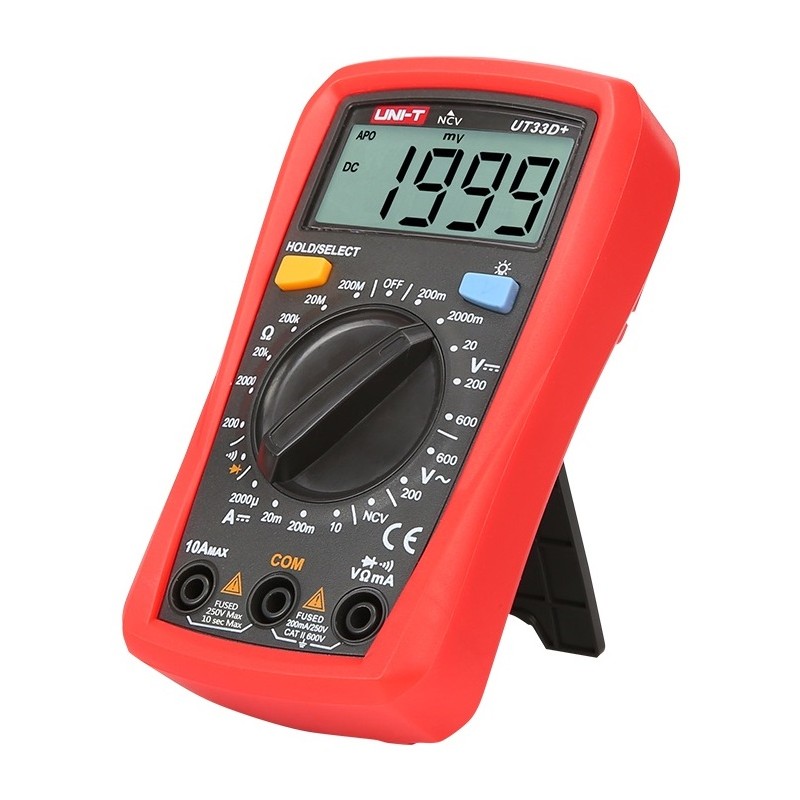

Multimeter UNI-T UT33D+

: FER02006
€14.50
Tax included
Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).

Specifications Range UT33D+
DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V) 200V/600V ±(1.2%+3)
DC current (A) 2000μA/20mA/200mA/10A ±(1%+2)
Resistance (Ω) 200Ω/2kΩ/20kΩ
/200kΩ/20MΩ/200MΩ		 ±(0.8%+2)
Features
Display count 　 2000
Auto power off/Auto backlight off 　 √
Diode test/Continuity buzzer 　 √
2m drop test/ Test probe holder 　 √
Range selection 　 Manual
NCV 　 √
General Characteristics
Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm
Standard accessories Batteries, test leads
Standard individual packing Gift box, English manual
Standard quantity per carton 60pcs
Standard carton measurement 640mm x 310mm x 350mm
Standard carton gross weight 19.8kg



UT33 Multimeter Series Comparison:

Specifications Range UT33A+ UT33B+ UT33C+ UT33D+
DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2) ±(0.5%＋2) ±(0.5%＋2) ±(0.5%＋2)
AC voltage (V) 600V ±(0.7%+3) 　 　 　
200V/600V 　 ±(1.2%+3) ±(1.2%+3) ±(1.2%+3)
DC current (A) 10A ±(1%+2) 　 　 　
200μA/200mA/10A 　 ±(1%+2) 　 　
2000μA/20mA/200mA/10A 　 　 ±(1%+2) ±(1%+2)
AC current (A) 10A ±(1.2%+3) 　 　 　
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ
/2MΩ/20MΩ/200MΩ		 ±(0.8%+2) 　 　 　
200Ω/2kΩ/20kΩ
/200kΩ/20MΩ/200MΩ		 　 　 　 ±(0.8%+2)
200Ω/2kΩ/20kΩ
/200kΩ/20MΩ		 　 ±(0.8%+2) ±(0.8%+2) 　
Capacitance (F) 2mF ±(4%+8) 　 　 　
Temperature -40℃~1000℃ 　 　 ±(1%+4) 　
-40℉~1832℉ 　 　 ±(1.5%+5) 　
Features
Display count 　 2000 2000 2000 2000
Auto power off / Auto backlight off 　 √ √ √ √
Diode test / Continuity buzzer 　 √ √ √ √
2m drop test / Test probe holder 　 √ √ √ √
Range selection 　 Auto Manual Manual Manual
Battery test 　 　 1.5V/9V/12V 　 　
NCV 　 　 　 　 √
General Characteristics
Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm
Standard accessories Batteries, test leads, K-type thermocouple (UT33C+)
Standard individual packing Gift box, English manual
Standard quantity per carton 60pcs
Standard carton measurement 640mm x 310mm x 350mm
Standard carton gross weight UT33A+: 18.6kg; UT33B+: 19.4kg; UT33C+: 20.6kg; UT33D+: 19.8kg
