4WD Mecanum Robot for Raspberry Pi Pico (pi pico included) - Keyestudio KS3029

:PCO01223
€59.70
Tax included

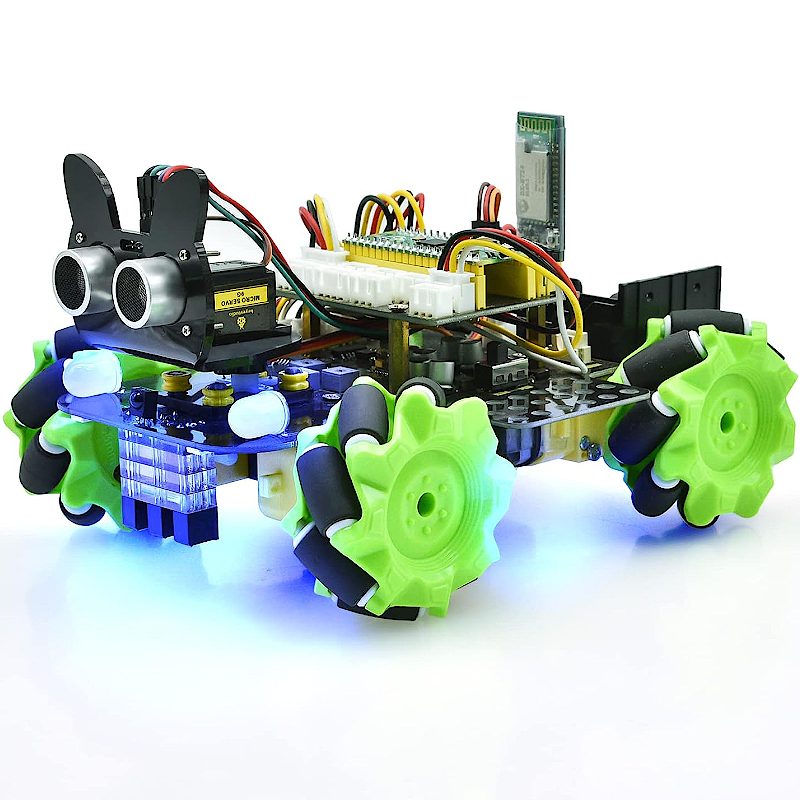

This Keyestudio 4WD Mecanum Robot Car For Pico is a smart DIY car dedicated to Raspberry Pi Pico. The smart car consists of a car body with extended functions, a PCB base plate with integrated motor driver sensors, 4 decelerating DC motors, Mecanum wheels, RGB lights, various sensors as well as acrylic boards. Therefore, you can easily assemble a cool Mecanum wheel 4WD smart car by yourself. We made two tutorials for the car, one is for C language using Arduino IDE and the other is for MicroPython using Thonny IDE, which will guide you to enjoy installation and programming. In this process, not only can you enhance your ability to make stuffs but also learn the skills of programming.

If you want to know more about this product, please check the Wiki Page

Nota: Batteries are not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Tutorials

  1. Online Tutorial: KS3029

  2. Download code and library: KS3029



Description

This product integrates a host of functions such as seven-color lights, WS2812RGB LEDs, servo, ultrasonic, line tracking, IR control as well as Bluetooth control. Among them, the seven-color lights, RGB2812 LEDs, motor drivers, 3-channel line tracking sensor, IR receivers (in order to receive accurately, we will place one at the head and one at the tail) are all integrated into the base plate, making it more accessible for us to install. What’s more, the 4 WS2812RGB LEDs enable to display different colors, and the 2 seven-color lights empower to make direction lights for the car. By the way, the motor speed of this product is adjustable. This product uses two 18650 lithium batteries for power supply. When installing and disassembling the battery, please pay attention to the positive and negative poles of the battery, and be sure not to reverse them.



Parameters

  1. Connector port input: DC 6V---9V

  2. Operating voltage of driver board system: 5V

  3. Standard operating power consumption: about 3W

  4. Maximum power: 14W

  5. Motor speed: 200RPM

  6. Working temperature range: 0-50℃

  7. Dimension: 134*181*75mm

  8. Environmental protection attributes: ROHS
