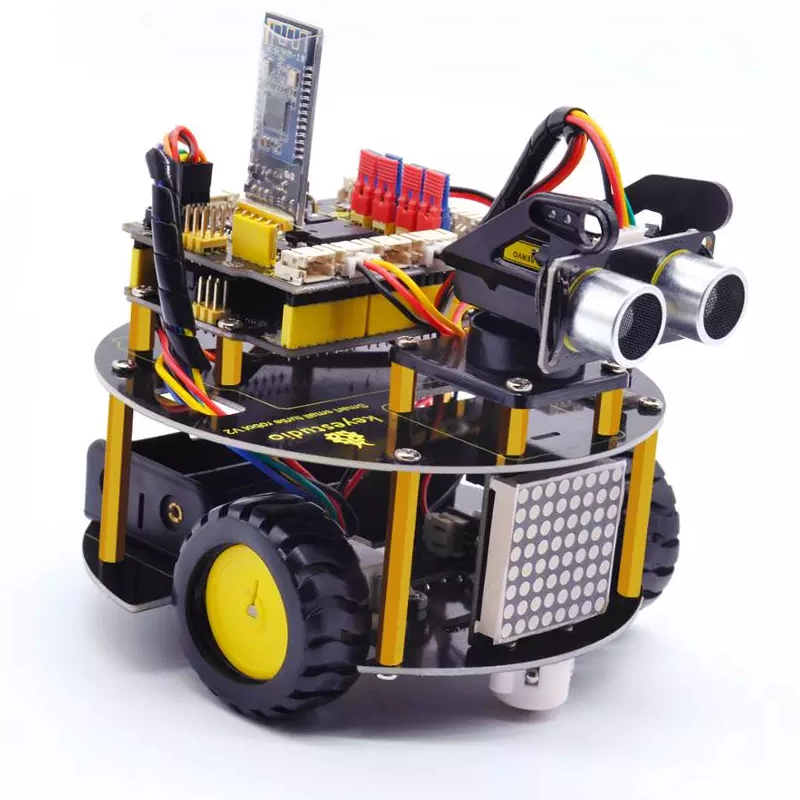

Smart Little Turtle Robot V3.0/Support IOS &Android APP Control- Keyestudio KS0464

Reference : ROB05045

€79.90

Tax included

People often match a control board, motor drive shield, DC motors, several sensor modules and a bunch of jumper wires to build own robot car. Have you feel very troublesome to connect a bunch of jumper wires?

This robot is easy to assemble as there is no need to solder to assemble it.

If you want to know more about this product, please check the Wiki Page.

Note: AA Cells / Batteries are not included.

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

Here comes keyestudio smart little turtle robot V3 upgraded version.

This new turtle robot simplify the wiring complication, avoiding wrong connection and saving your time.

Compared with the old turtle robot version, the upgraded turtle robot still retains the functions like line tracking, obstacle avoidance, IR and Bluetooth control.

Furthermore, you can see terrific improvements as follows:

1) The connectors on the motor drive shield have anti-reverse protection, simple to connect with only one cable.

2) The motor drive shield comes with a slide switch for power control, and also adds 8 jumper caps to control the DC motor direction, easy for code debugging.

3) Adding a 8*8 dot matrix module to show the robot’s running status.

4) Using Bluetooth HM-10 module; can support Bluetooth 4.0; Bluetooth APP supporting both Android and iOS system.

5) Can freely connect the battery case 18650 or 4-cell AA battery case to supply power for the robot car. Note that batteries are Not Included. Users can freely choose two 18650 batteries or four AA batteries (1.5V) to supply power for the robot car.

6) Clear silk-screen for motor A and B on the PCB plate or you can check it out on the Acrylic plate and motor drive shield. Protect motors from avoid wrong connection;

7) Coding the robot car with Mixly blocks software, simple to code and ready to play.

From the basics up to complex projects, through this kit you can learn to control the robot car with Mixly block coding.

It allows you to quickly learn graphic programming in entertaining, nurturing your interest in science and logical thinking.

Take your brain on a fun and inspiring journey through the world of programming and electronics.

Features:

Multi-purpose function: Obstacle avoidance, follow, IR remote control, Bluetooth control, ultrasonic follow and displayed face emoticons.
Simple assembly: No soldering circuit required, complete assembly easily.
High Tenacity: Aluminum alloy bracket, metal motors, high quality wheels and tracks
High extension: expand other sensors and modules through motor driver shield and sensor shield
Multiple controls: IR remote control, App control(iOS and Android system)
Basic programming：C language code of Arduino IDE.
Working voltage: 5v
Input voltage: 7-12V
Maximum output current: 2A
Maximum power dissipation: 25W (T=75℃)
Motor speed: 5V 63 rpm/min
Motor drive mode: dual H bridge drive
Ultrasonic induction angle: <15 degrees
Ultrasonic detection distance: 2cm-400cm
Infrared remote control distance: 10M (measured)
Bluetooth remote control distance: 50M(measured)
Bluetooth control: support Android and iOS system
