KitiBot, Starter Robot, Graphical Programming, Tracked Version

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

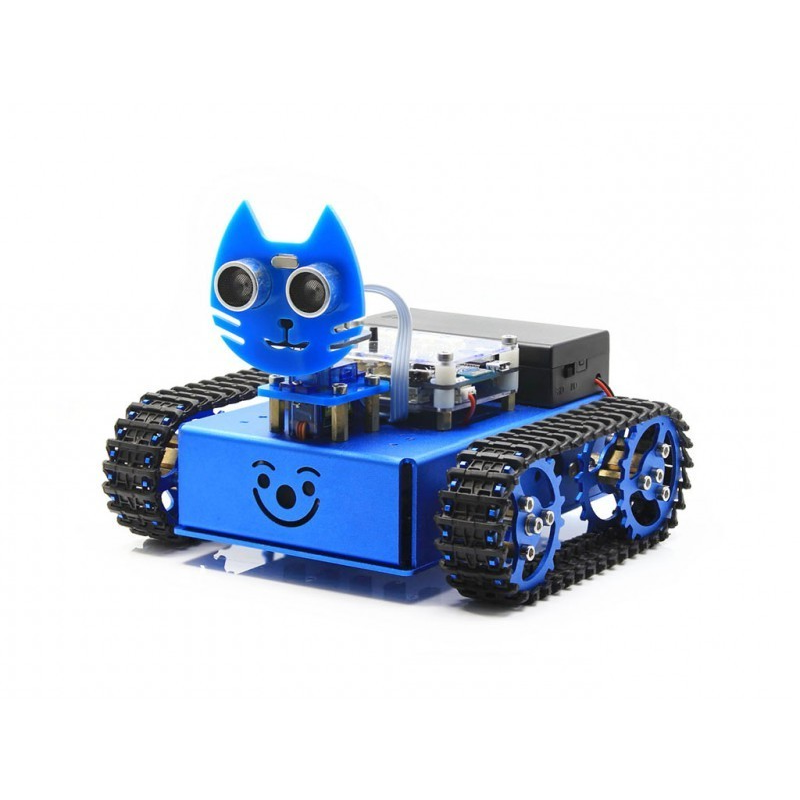

KitiBot is specially designed for STEAM education, comes with graphical programming software to help kids to learn programming just like easily building blocks. KitiBot-MG-T is the tracked version.

Combined with the open source demo codes from Waveshare, KitiBot is also an ideal choice for electronics enthusiasts and creators to fast get started with robotic development.

KitiBot features a control board named Mega2560, and several typical robotic functional modules includes: line tracking, obstacle avoiding, ultrasonic ranging, servo, IR remote control, etc.

What's on the Mega2560

Mega2560 is an ATMEGA2560-16AU development board, compatible with the Arduino Mega 2560 R3, offers higher performance and more RAM than the UNO R3.

There're various programmable modules like dual-mode Bluetooth, gesture sensor, ambient light sensor, IR receiver, RGB LED, buzzer, and so on. For easily connecting with more expansion devices, it also breakout I2C, SPI, UART interfaces and provides sufficient sensor connectors.

1. ATMEGA2560-16AU:
   FLASH: 256KB (8KB for bootloader)
   SRAM: 8KB
   EEPROM: 4KB
2. TB6612FNG: dual H-bridge motor driver
3. Dual-mode Bluetooth: Bluetooth remote control, compatible with both iOS and Android
4. AMS1117-5.0: 5V regulator
5. FT232RL: USB to UART
6. IR receiver: IR remote control
7. MPU9255 gesture sensor: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
8. TSL2581FN light sensor: detect ambient light
9. Buzzer: essential component to play music
10. WS2812B: RGB LED
11. User button
12. Power switch
13. Indicators:
    USR: user indicator
    STA: Bluetooth status indicator
    PWR: power indicator
14. Reset
15. Micro USB connector: for programming or UART debugging
16. Peripheral connectors: for connecting external devices and sensors
17. Motor interface
18. Power supply interface: 7V~12V input

Development Resources

• Tutorials
• KitiBot how-to-install
• Demo code
• Circuit diagram
• Development software

Wiki : www.waveshare.com/wiki/KitiBot-MG

Weight: 0.755 kg

Note: this product requires two 18650 batteries to work, which are NOT included and should be purchased separately.

1. Metal box x1
2. Gears 8PCS x1
3. Caterpillar track 2PCS x1
4. Mega2560 control board x1
5. Acrylic panels for control board 2PCS x1
6. Line tracking sensor x1
7. Ultrasonic sensor x1
8. KitiBot acrylic head x1
9. Servo x1
10. Servo mounting board x1
11. Ultrasonic adapter x1
12. 370 coding motors 2PCS x1
13. Infrared remote controller x1
14. 18650 battery holder x1
15. PH2.0 20cm 4Pin same side contact cable x1
16. PH2.0 20cm 7Pin same side contact cable x1
17. PH2.0 20cm 6Pin same side contact cable 2PCS x1
18. USB type A plug to micro B plug cable x1
19. KitiBot-MG-T screws x1
20. Screwdrivers 2PCS x1
