Motor:bit DC Motor Controller for Micro:bit - ELECFREAKS EF03406

: PCO07123
€11.90
Tax included

NOTE: Micro:bit board is not included!

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

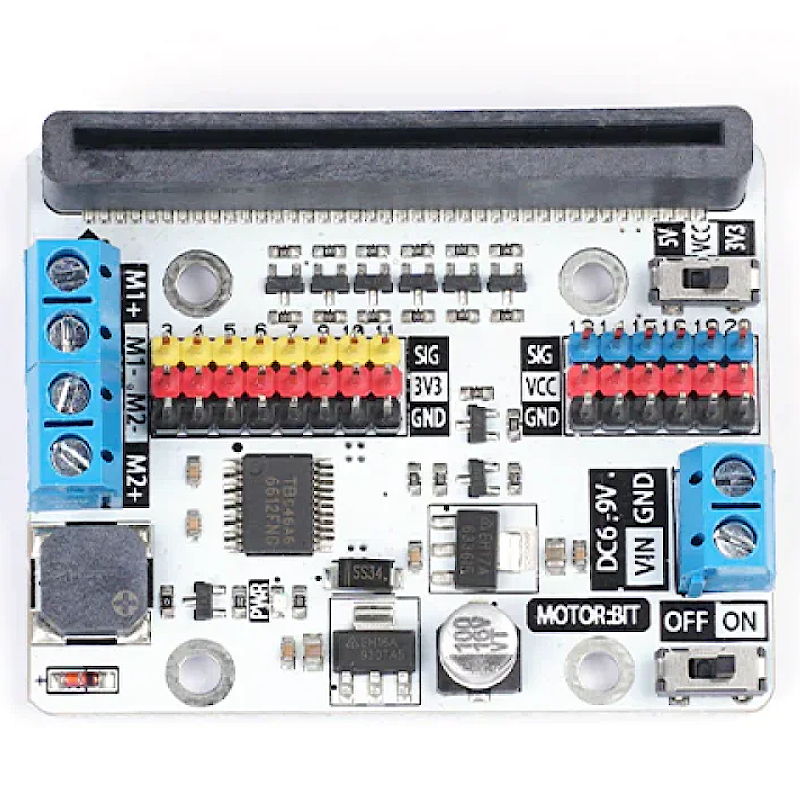

Motor:bit is a motor driving board based on micro:bit. It has integrated a TB6612 motor driving chip, which is used to drive two motors with a maximum 1.2A DC single channel current. It has also integrated 12 GVS ports(for connecting OCTOPUS series of electric bricks) and 1 IIC communication port. These ports allow you to extend with various sensors and electric modules. On the board, P3-P7, and P9-P10 are IO ports for directly driving 3.3V devices; P13-P16, and P19-P20(IIC port) support 3.3V/5V voltage switch. Sliding the voltage switch onboard, it is available to drive 3.3V or 5V devices. Besides, you can play music with the buzzer on motor:bit. Motor:bit is totally designed for DIYers. You can use it to create your own smart car or more funny projects.



PARAMETERS

Item

Parameter

Product Name

motor:bit

Version

No. V1.6

SKU

EF03406

DC Power Voltage

DC 6~12V

DC Motor Driven

2

Max Output Current of Each Motor Connector

1.2A

Extendable Digital IO Port

12

Extendable Analogue IO Port

3

IIC Connector

Support

Passive Buzzer

Support

Size

60mm x 47.5mm

Net Weight

20g



Packing List

Components

Qty(pcs)

Motor:bit

1



Features

  1. Support 2 DC motors.

  2. Max driving current of single channel is 1.2A.

  3. Extend 14-channel IO ports and lead out it by GVS pins. Among it, 6 ports support 3V/5V voltage switch.

  4. With 1 passive buzzer on board.



Dimension

../_images/zXGYS2h.jpg





Definition of Pins

../_images/yiJJzHK.jpg






Introduction of Major Components







Hardware Assembly

Connect two TT motors to micro:bit as the picture showed below.

../_images/5ayGCgd.png



RESOURCES

Motor:bit Guide
