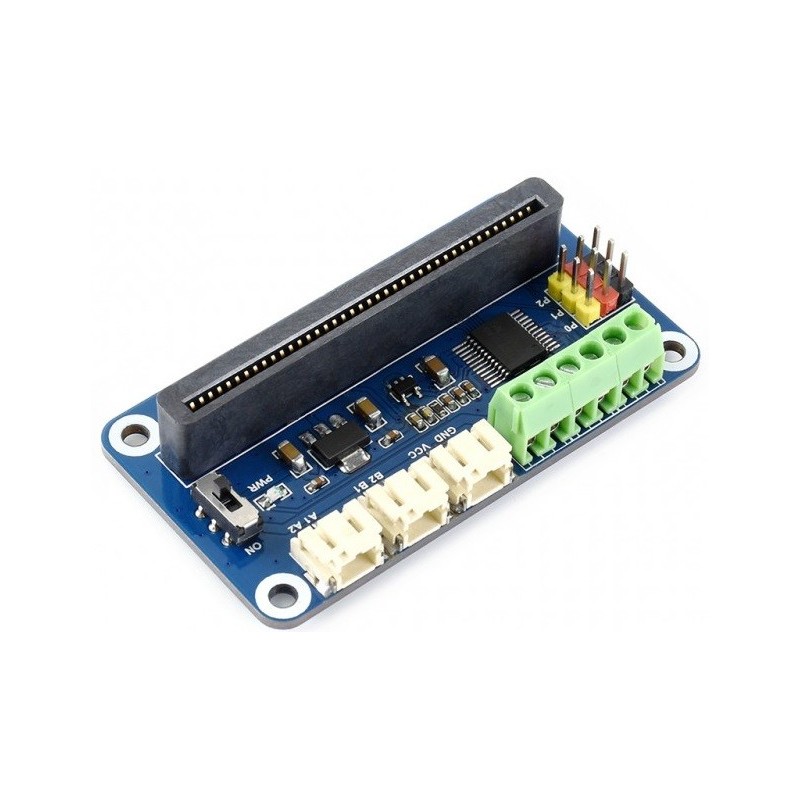

Driver Breakout for micro:bit, drives motors and servos

: PCO07017
€10.80
Tax included

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.

Note: micro:bit in the photos is NOT included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • micro:bit edge connector, directly pluggable
  • 2x DC motor interfaces, 3x servo interfaces
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
  • Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
  • Comes with development resources and manual (micro:bit graphical examples)

Specifications

  • Power supply: 6V~12V (VIN terminal)
  • Servo voltage: 5V
  • Logic voltage: 3.3V
  • Driver: TB6612FNG
  • Dimension: 65mm x 36mm
  • Mounting hole size: 3.0mm

Dimensions

Motor Driver for micro:bit dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Motor_Driver_for_micro:bit



PACKAGE CONTENT

Weight: 0.019 kg

Note: micro:bit in the photos is NOT included.

  1. Motor Driver for micro:bit x1




PCO07017
