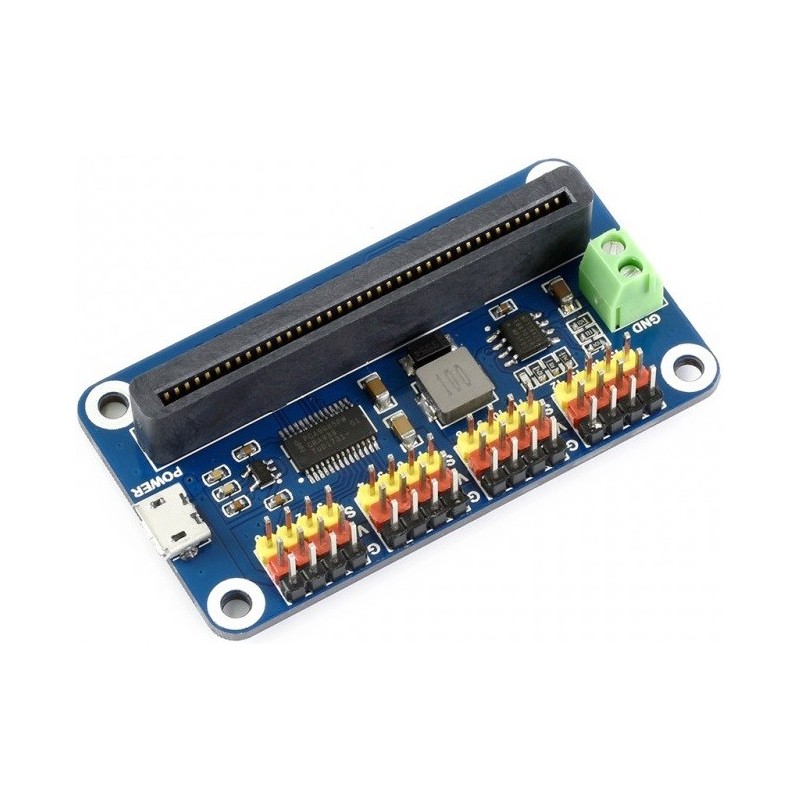

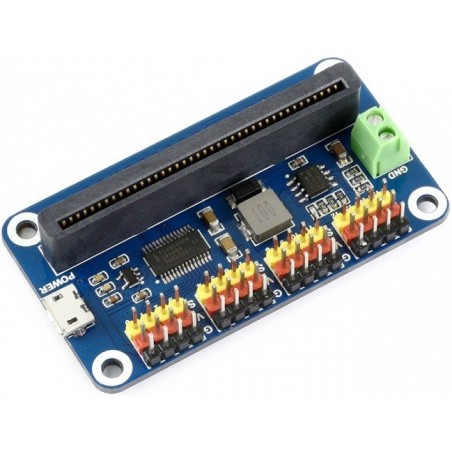

Servo Driver for micro:bit, 16-Channel, 12-bit, I2C

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

• micro:bit edge connector, directly pluggable
• I2C controlled, using only 2 pins
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)

Specifications

• Power supply: 5V (POWER connector) OR 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: PCA9685
• Control interface: I2C
• Dimension: 65mm x 36mm
• Mounting hole size: 3.0mm

Demo

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Servo_Driver_for_micro:bit

PACKAGE CONTENT

Weight: 0.019 kg

Note: micro:bit and servo in the photos are NOT included.

1. Servo Driver for micro:bit x1

1
