Motor party add-on pack for Arduino

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

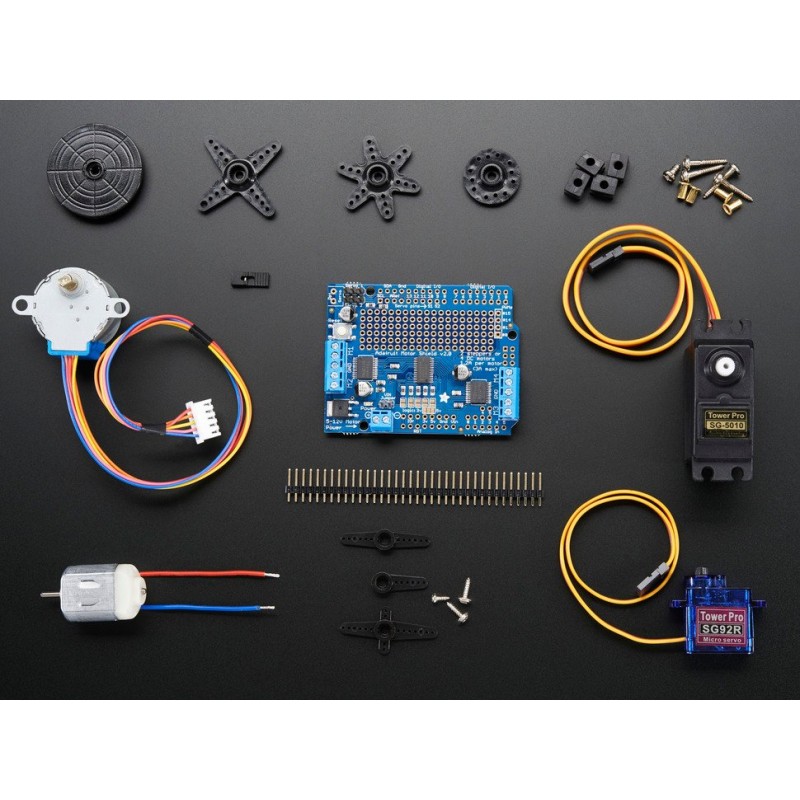

Included in this add-on pack is:

• Adafruit Motor Shield v2 for Arduino
• 6 Volt DC hobby motor
• Small stepper motor
• Standard size servo
• Micro size servo

An Arduino is not included, and you'll need one to use the shield. The shield does take a little assembly but its fairly easy. Makes a fantastic addition to a Arduino Starter Pack.

If you'd like to stack shields on top of the Adafruit Motor Shield, grab a set of stacking headers to solder on!

Check out these specs:

• 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter!
• 4 H-Bridges: TB6612 chipset provides 1.2A per bridge  (3A for brief 20ms peaks) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 13.5VDC.
• Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
• Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
• Motors automatically disabled on power-up
• Big terminal block connectors to easily hook up wires (18-26AWG) and power
• Arduino reset button brought up top
• Polarity protected 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
• Tested compatible with Arduino UNO, Leonardo, ADK/Mega R3, Diecimila & Duemilanove. Works with Due with 3.3v logic jumper. Works with Mega/ADK R2 and earlier with 2 wire jumpers.
• Download the easy-to-use Arduino software library, check out the examples and you're ready to go!
• 5v or 3.3v compatible logic levels - jumper configurable.

Need to learn more about the shield and how to use it, check out this link: Adafruit Motor Shield V2
