• On sale!
  • -€20.00

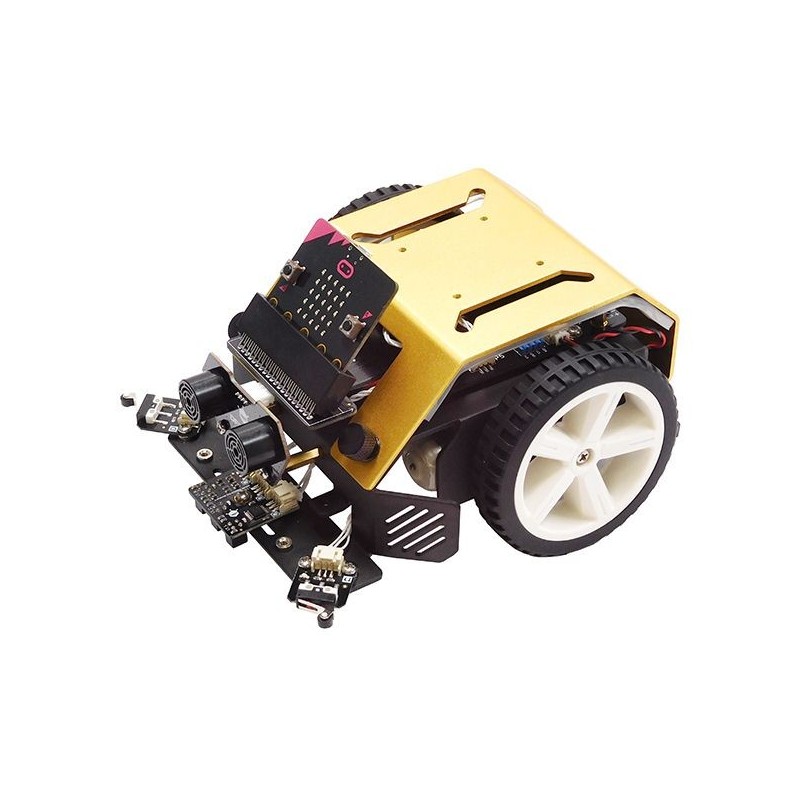

Max:bot Programmable Robot Kit with micro:bit included

: ROB05025
€169.90
€149.90 Save €20.00
Tax included

Max:Bot is a programmable platform for 8+ years old kids to learn about robotics

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Max:Bot An entry-level DIY robot that maximizes children’s creativity

Max:Bot First Look




What is Max:Bot?
Max:Bot is a programmable toy for 8+ years old kids to learn about robotics.




Children program with Max:Bot
Learn Robotics

Children program with Max:Bot
Create your kid’s own invention

Children program with Max:Bot
Robotics Competition

FEATURES

Max:Bot Components

10+ electronic modules, including motors, speakers, line trackers, distance sensors, gesture sensor, etc. Extendable with 50+ DFRobot Boson modules.
More about Boson series
Max:Box Structure
Well-designed aluminum structure, assemble the robot by your kid’s own.

Max:Box Teaching Card
Detailed and vivid course material that teaches kids how to use Max:Bot play music, track line, avoid gap, sense distance, or even communicate with other Max:Bots.

Program Max:Bot with Scratch, MakeCode block editor, Python or JavaScript
Based on micro:bit platform. Program Max:Bot with Scratch, MakeCode block editor, Python or JavaScript. Available from PC, Mac, IOS and Android devices.

APPLICATIONS

Max:Bot Track Line
Track Line

Max:Box Chase Light
Chase Light

Max:Bot Detect Collison
Detect Collison

Max:Bot Detect Edge
Detect Edge

Max:Bot Remote Control
Remote Control

Max:Bot Avoid Obstacle
Avoid Obstacle



DIY Programmable Robot Kit





Max bot, Kit de robot programable para niños





SPECIFICATION

  • Power Supply: AA Battery x 4
  • Operating Voltage: 3.3V
  • Maximum Current: 500mA
  • Micro USB Power Supply voltage: 5V
  • Working Temperature: 0-60 ℃
  • Net Dimension：200*150*100 mm
  • Package Dimension：250*130*150 mm
  • Weight: 1250g


Note: The MicroUSB port is reserved for charging lithium battery. However, lithium battery is not included in the package due to the shipping policy. Please contact tech-support for more information.


DOCUMENTS

SHIPPING LIST

  • micro:bit x1
  • Max:Bot Mainframe x1
  • Max:Bot Top Cover x1
  • Max:Bot Expansion Board x1
  • DC Motor x2
  • Wheel x2
  • Front Supporting Wheel x1
  • Micro USB Cable x1
  • Speaker x1
  • Collision sensor x2
  • 3-Way Line Tracker x1
  • Line Tracking Map x1
  • Ultrasonic Distance Sensor x1
  • Battery Case (AA x 4) x1
  • RGB Light Strip x2
  • Double Sided Tape x1
  • Cable (Short) x4
  • Cable (Long) x4
  • 2-Way Screw Driver x1
  • Hex Key x1
  • Brass Stand (short) x4
  • Brass Stand (long) x2
  • M3 Screws x25
ROB05025
