RGB LED Matrix

: LCD01019
€17.50
Tax included

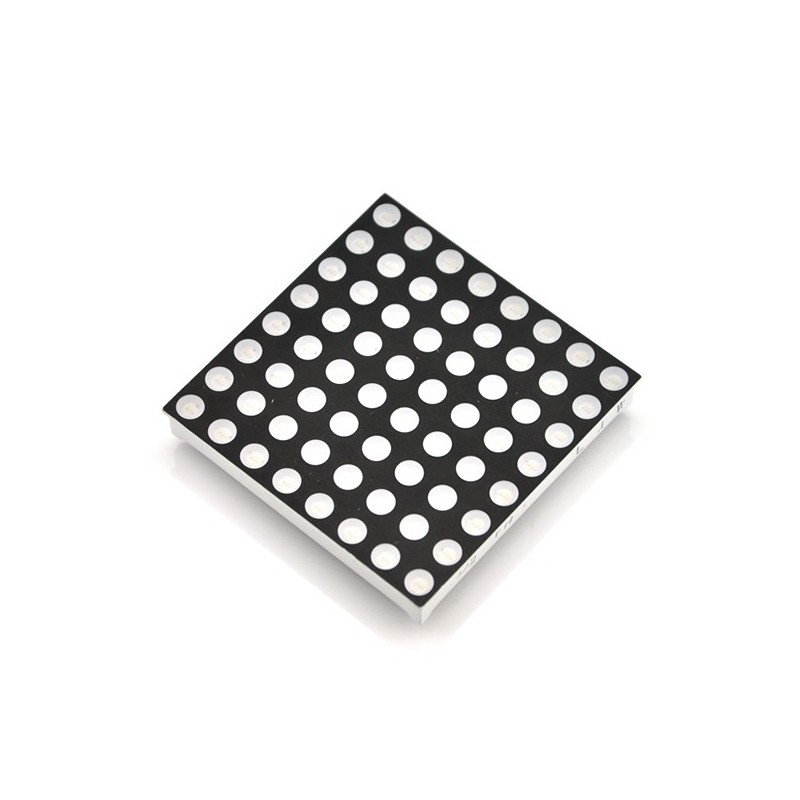

Led Matrix, 8 by 8 RGB round Leds, Common anode.

Quantity

Description: Triple Color LED Matrix! This large matrix has 64 Red, 64 Green, and 64 Blue individual LEDs built into one common anode housing. It's a monster to control, but just imagine what kind of colors you could produce by mixing!


Dimensions: 0.33x2.38x2.38"

Technical Details:

Parameter

color

           Max Value



Max Power

 Red

70

mW
Green

100

Blue

100

Max Forward Current

Red

30

mA

Green

30

Blue

30

Reverse Voltage

 Red

5

V

Green

5

Blue

5

Working Temperature

-30℃ to  +80℃

Storage Temperature

 -30℃ to  +100℃

Parameter

Color



Mini Value

Max Value

Unit

Test Condition

Luminous flux

Red

Iv

80

100

mcd

IF=20mA

Green

180

200
Blue

50

70

Dominant Wavelength

Red

λp

625

630

nm

IF=20mA

Green

517.5

520

Blue

467.5

470

Forward Voltage

 Red

VF

1.9

2.2

V

IF=20mA

Green

3.1

3.4
Blue

3.1

3.4

Reverse Current

Red

IR

/

10

UA

VR=5V
Green

/

10

Blue

/

10
LCD01019
