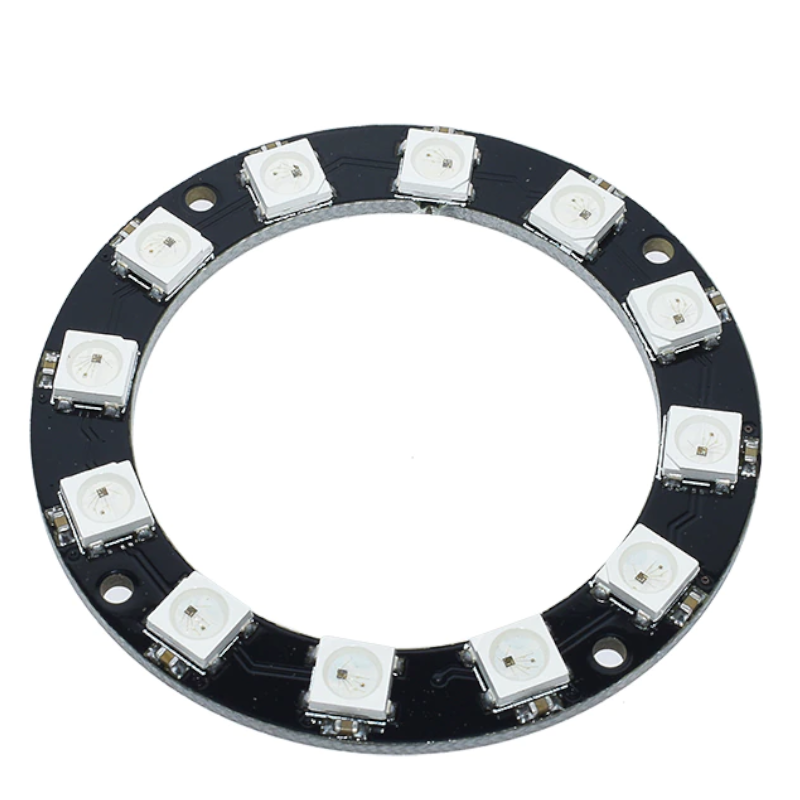

NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS
NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS
Consult the Selection Guide to discover the full range of WS2812 Matrixes and LEDs.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Use this 12 Pixel RGB LED Ring to add a ring of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED ring if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole ring. Each of the 12 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.
Specifications:
-
RGB LED Ring
-
Chipset: WS2812 (Neopixel compatible)
-
Number of LEDs: 12
-
Outside Diameter: 50mm
-
Can be soldered to conductive thread or wire
-
Pinout: 5 / GND / DI: Data Input / DO: Data Output (connect to the Data Input of the next LED ring or just leave unattached)
Selection Guide (all models):
CEL03108 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 1x LED
CEL03109 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 8 LEDS
CEL03110 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS
CEL03111 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 16 LEDS
CEL03112 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 24 LEDS
CEL03113 - NEOPIXEL RGB LED MODULE WS2812B 5050 - STICK 8 LEDS
LCD03021 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 2X2 MATRIX 4 LEDS
LCD03022 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 4X4 MATRIX 16 LEDS
