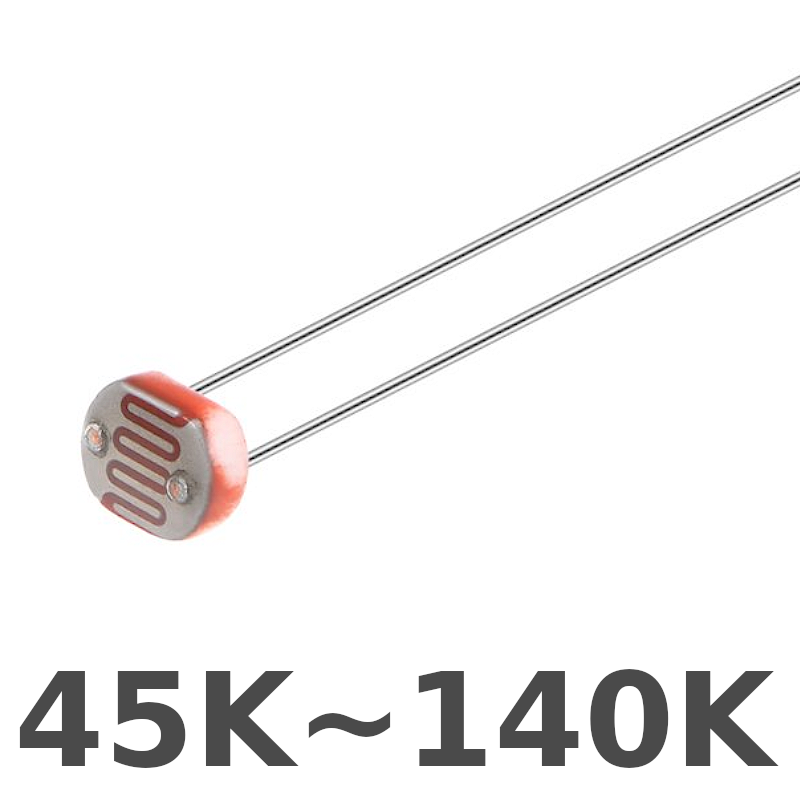

LDR 5549 100mW Ø5mm - 45K~140K Ohm

:SEN04070
€0.30
Tax included

The LDR (Light Dependent Resistor) Light Sensor is a component whose resistance varies according to the intensity of the light. The more light that falls on the component, the lower the resistance.

This LDR Light Sensor can be used in projects with Arduino and other microcontrollers for alarms, home automation, presence sensors, etc.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

  • Model: GL5549;
  • Diameter: 5mm;
  • Maximum voltage: 150VDC;
  • Maximum power: 100mW;
  • Operating voltage: -30°C to 70°C;
  • Spectrum: 540nm;
  • Length with terminals: 32mm;
  • Resistance in the dark: 10MΩ (0 Lux);
  • Light resistance: 45-140 KΩ (10 Lux).
SEN04070
