Gravity: I2C IP68 Waterproof Ambient Light Sensor (1-65535lx) - DFRobot SEN0562

: SEN04066
€11.70
Tax included

This waterproof digital ambient light sensor is designed to deliver accurate measurements of light intensity within the range of 1-65535lx. It incorporates a 50Hz/60Hz light noise reject function that ensures stable and reliable performance.
With an easy-to-use Gravity interface and I2C communication, the ambient light sensor is incredibly user-friendly for using with main-controllers like Arduino UNO.

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

What is an Ambient Light Sensor?

An ambient light sensor is a type of sensor that measures the amount of light in the surrounding environment. These sensors can be used in various applications, including lighting and backlighting control and ambient light sensing.

It is also used in greenhouses to assess the exposure of plants to light and ensure they are getting enough light for optimal growth.

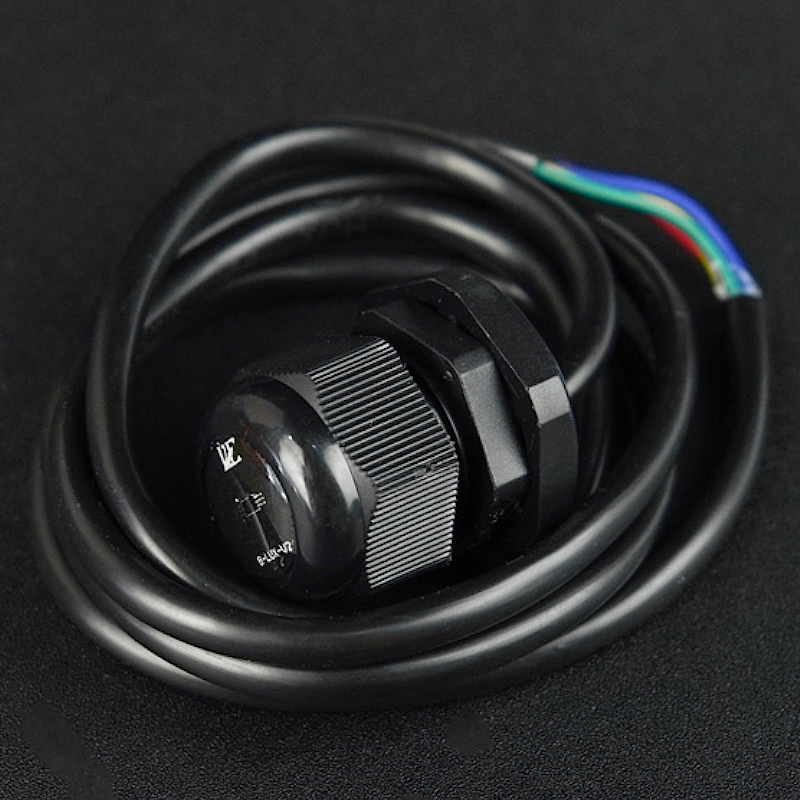

Waterproof Digital Ambient Light Sensor Introduction

This waterproof digital ambient light sensor is designed to deliver accurate measurements of light intensity within the range of 1-65535 lx. It incorporates a 50Hz/60Hz light noise rejection function that ensures stable and reliable performance.

With an easy-to-use Gravity interface and I2C communication, the ambient light sensor is incredibly user-friendly for use with microcontrollers like the Arduino UNO. Plus, the sensor features an IP68 waterproof rating, which means it can be fully immersed in water without suffering any damage. This makes it perfect for outdoor projects that require reliable light measurement in harsh environments, such as vegetable greenhouses, smart car lights, and weather stations.

Wiring Diagram, Light Sensor, Arduino, Arduino Uno, DFRduino UNO R3

Wiring Diagram of Gravity: I2C Waterproof Ambient Light Sensor and Arduino Uno



Features

  1. Low power consumption

  2. IP68 waterproof rating

  3. I2C Communication



Applications

  1. Greenhouses

  2. Smart car lights

  3. Weather stations



Specification

  1. Supply Voltage: 5V

  2. Operating Current: 1µA

  3. Detection Range: 1 - 65535lx

  4. Accuracy: 1.2lx

  5. Communication Mode: I2C

  6. Operating Temperature: -40 to 85°C/-40 to 185℉

  7. Waterproof Rating: IP68

  8. Thread Length: 10mm

  9. Cutout Size: 26mm

  10. Wrench Size: 31mm

  11. Cable Diameter: 3mm

  12. Wire Length: 1m



Documents

Shipping List

  1. Gravity: I2C Waterproof Ambient Light Sensor (1-65535lx) × 1

SEN04066
