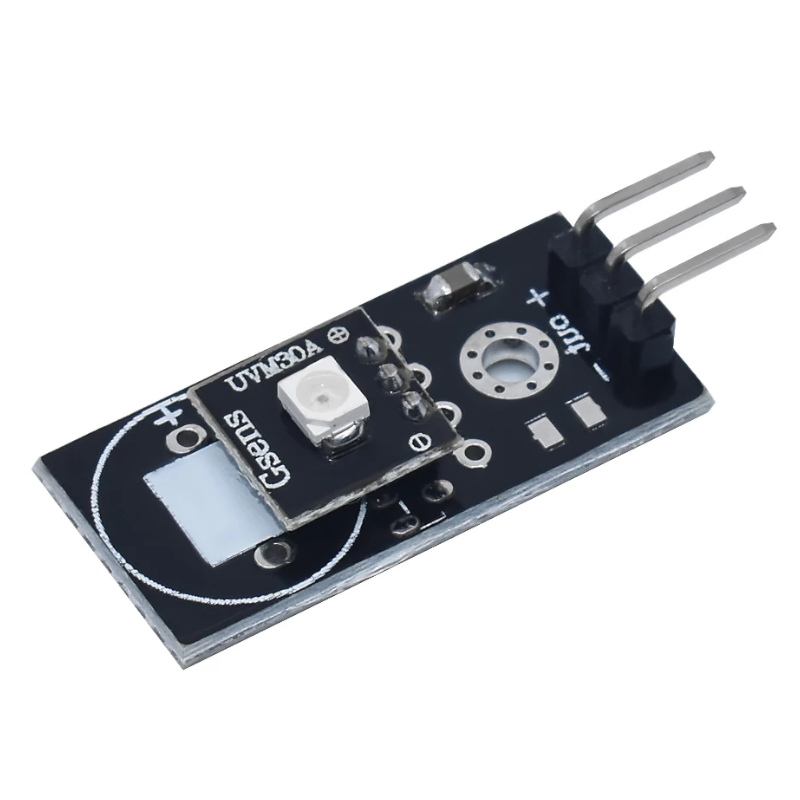

UVM-30A UV Ultraviolet Ray Detection Sensor Module 3-5V for Arduino
The UVM30A UV sensor module is used for detecting the intensity of ultraviolet radiation. This module has an analog output that changes with the intensity of UV light.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
UV sensor module UVM-30 for Arduino features:
-
Operating voltage: 3-5 VDC,
-
Voltage input: DC 0-1 VDC,
-
3-pin connector:
-
GND (-): ground connection,
-
Out: sensor output signal,
-
VCC (+): sensor supply,
-
Measurement accuracy: +/- 1UV index,
-
Working current: 0.06mA (standard) / 0.1mA (max.),
-
Response wavelength: 200-370 nm,
-
Working temperature: -20ºC - + 85ºC,
-
PCB size: 28x12mm
Documents:
How to calculate UV Index
The module has an analog output and varies approximately between 0 and 1 volt. The output voltage of this module varies in accordance with the intensity of UV light according to the following diagram.
You can see the accurate value of UV intensity according to output voltage in the image below.
Each level of UV intensity represents the causative factor. The image below shows what each level includes:
UVM30A UV Sensor Module Pinout
This module has 3 pins:
-
VCC: Module power supply – 3V to 5V
-
GND: Ground
-
OUT (SIG): Output analog signal – varies from 0-1 V
Interfacing UVM30A UV Sensor Module with Arduino
Step 1: Circuit
The following circuit shows how you should connect Arduino to UV sensor. Connect wires accordingly.
Step 2: Code
Upload the following code to your Arduino.
/*
UVM30A-UV-Module
Made on 02 Feb 2020
by Amir Mohammad Shojaee @ Electropeak
Home
*/
void setup(){
Serial.begin(9600);
}
void loop()
{
int sensorValue;
sensorValue=analogRead(A0);
Serial.print("The voltage value:");
Serial.print(sensorValue*5000/1023.0);
Serial.println("mV");
delay(1000);
Serial.print("\n");
}
We want to display the output in millivolts on the Serial Monitor. So, we first save the analog input and convert its range to 0 to 1000 in millivolts.
By bringing the camera flashlight of your mobile phone close to the sensor, the output changes in millivolts as shown below.
