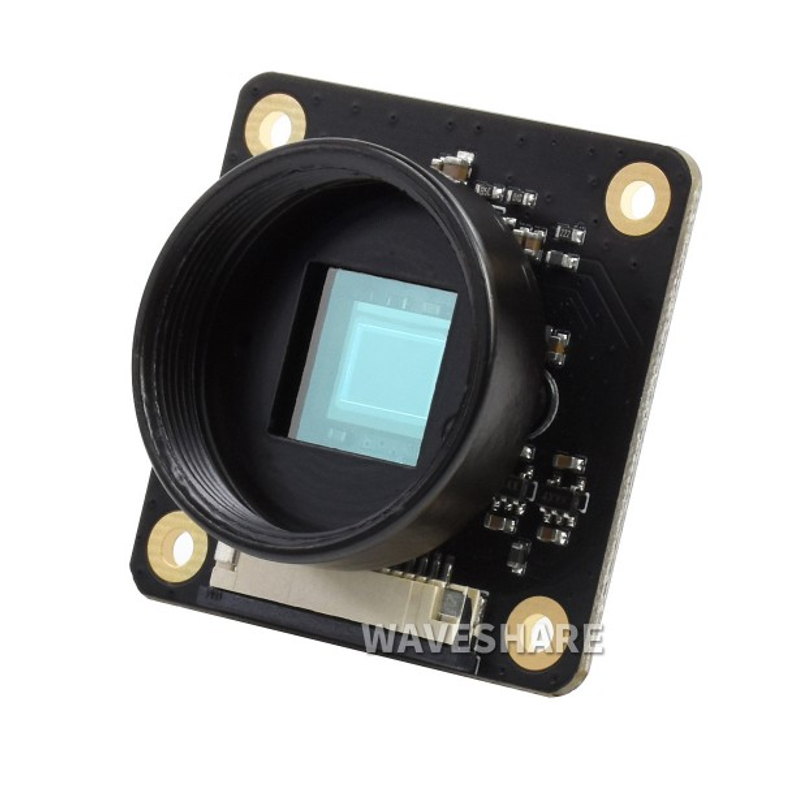

High Quality Camera For CM3 / CM3+ / Jetson Nano, 12.3MP IMX477 Sensor, Supports C / CS Lenses

: SEN04051
€67.90
Tax included

The IMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

High Quality 12.3MP Camera

High Resolution High Sensitivity IMX477 Sensor

Supports CM3 / CM3 Lite / CM3+ / CM3+ Lite / Jetson Nano


The IMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

The IMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.


Specifications


Sensor

Sony IMX477R

12.3MP, 4056 (H) × 3040 (V)

7.9mm CMOS diagonal size

1.55µm (H) × 1.55µm (V) pixel size

Output

RAW12 / 10 / 8, COMP8

Back focus

Adjustable

Lens Support

C-mount / CS-mount (C-CS adapter included)

IR cut filter

Integrated


Higher resolution, better imaging effect

Compared to 8MP of normal Raspberry Camera, this high quality camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect




With mounted lens

C-mount 16mm Telephoto Lens (C-CS adapter required)


CS-mount 6mm Wide Angle Lens (C-CS adapter should be removed)


Lens Selection




6mm Wide Angle Lens


16mm Telephoto Lens


25mm Telephoto Lens


35mm Telephoto Lens


8-50mm Zoom Lens

Image format

1/2"

1"

2/3"

1"

1/2.3"

Focal length

6mm

16mm

25mm

35mm

8-50mm

Aperture

F1.2

F1.4-16

F1.4-16

F1.7-16

F1.4

Mount

CS-mount

C-mount

Angle of view

63°

1"      44.6° × 33.6°
2/3"      30.0° × 23.2°
1/1.8"      24.7° × 18.6°
1/2"      21.8° ×16.4°

2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5°

1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9°

45°-5.35°

Back focus

7.53mm

17.53mm

Optical length

-

67.53mm

-

-

-

Distortion

-

1"（-0.7%）
1/2"（-0.5%）
1/3"（-0.15%）

0.05%

0.35%

-

M.O.D.

0.20m

0.20m

0.25m

0.30m

0.20m

Dimensions

Φ30.00 × 34.00mm

Φ39.00 × 50.00mm

Φ34.00 × 34.00mm

Φ35.00 × 34.00mm

Φ40.00×68.30mm

Operation

Manual aperture adjustment

Weight

53g

133.7g

82g

78g

148g



Working with Compute Module


Working with Jetson Nano


  1. Raspberry Pi Compute Module, Jetson Nano, and lenses in the photos are NOT included.

  2. Specific driver is required for Jetson Nano to use the IMX477 camera.

Resources & Services

Wiki: IMX477_12.3MP_Camera

Selection Guide

Part Number

Pixels

Sensor

CMOS Size

IR-CUT Filter

Lens Support

For use with

Raspberry Pi HQ Camera

12.3MP

IMX477R

7.9mm

Integrated

C/CS

Raspberry Pi
CM3, CM3 Lite, CM3+, CM3+ Lite
Jetson Nano

IMX477 12.3MP Camera

12.3MP

IMX477R

7.9mm

Integrated

C/CS

CM3, CM3 Lite, CM3+, CM3+ Lite
Jetson Nano



Package Content

Weight: 0.027 kg

  1. IMX477 12.3MP Camera main unit
  2. C-CS adapter
  3. Dust cap
  4. FFC ribbon



SEN04051
