16mm Telephoto Lens for Raspberry Pi High Quality Camera

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

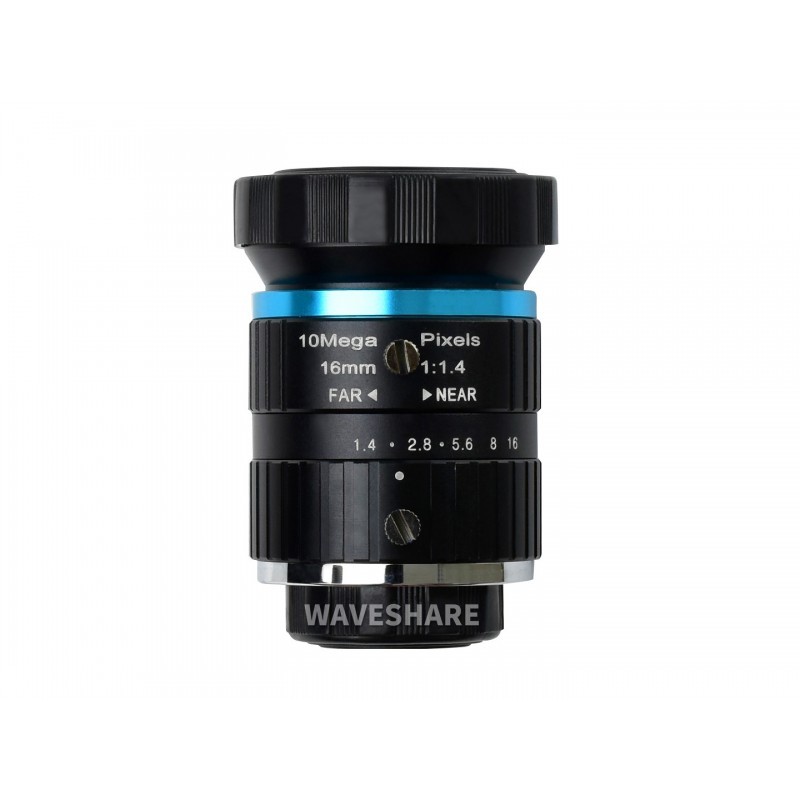

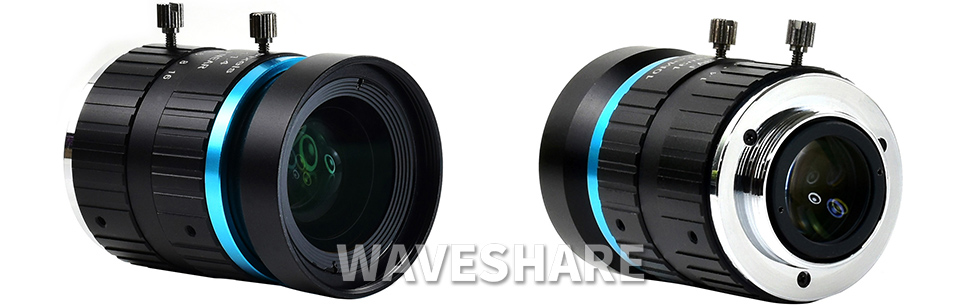

16MM TELEPHOTO LENS

16mm C-Mount Telephoto Lens For Raspberry Pi High Quality Camera

Shorten The Distance

16mm Focal Length High Definition Telephoto Lens, Capturing Every Tiny Details

Multi Field Angle Options

Brings The Beautiful World Into Your Vision

Fitting To The Camera

Fitting The Lens To Raspberry Pi High Quality Camera (C-CS Adapter Required)

Working With Raspberry Pi

• Raspberry Pi, and High Quality Camera in the photos are NOT included
• To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

Lens Selection

	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens
IMAGE FORMAT	1/2"	1"	2/3"	1"	1/2.3"
FOCAL LENGTH	6mm	16mm	25mm	35mm	8-50mm
APERTURE	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4
MOUNT	CS-mount	C-mount
ANGLE OF VIEW	63°	1"      44.6° × 33.6° 2/3"      30.0° × 23.2° 1/1.8"      24.7° × 18.6° 1/2"      21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°
BACK FOCUS	7.53mm	17.53mm
OPTICAL LENGTH	-	67.53mm	-	-	-
DISTORTION	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m
DIMENSIONS	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm
OPERATION	Manual aperture adjustment
WEIGHT	53g	133.7g	82g	78g	148g

Resources & Services

Wiki: www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera

PACKAGE CONTENT

Weight: 0.219 kg

1. 16mm Telephoto Lens for Pi
