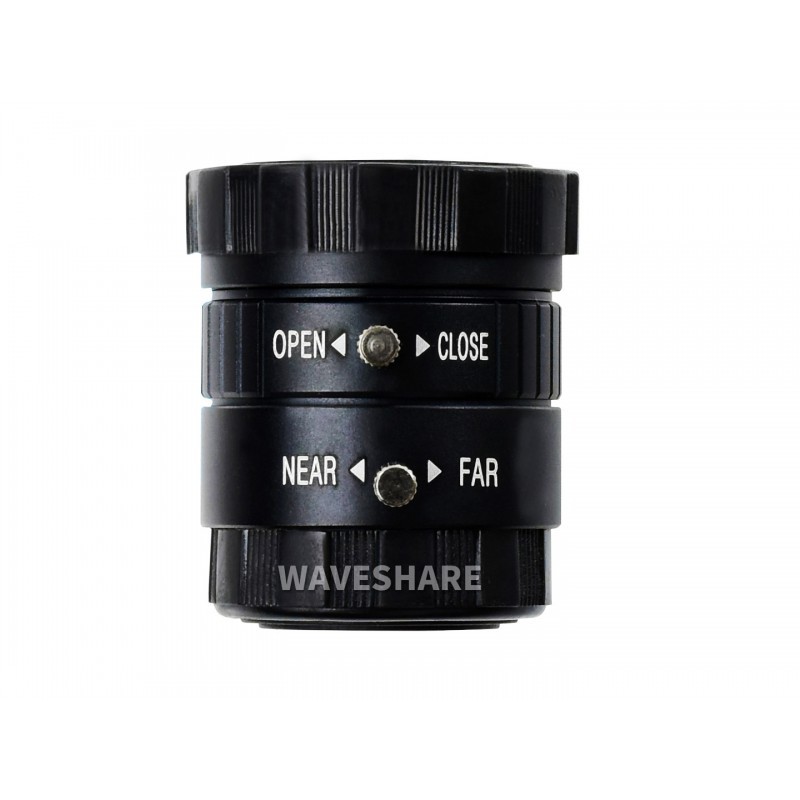

6mm Wide Angle Lens CS-Mount for Raspberry Pi High Quality Camera

: SEN04046
€32.10
Tax included

Quality Industrial Wide Angle Lens, 6mm Focal Length, 63° Field Angle, CS-Mount, Compatible With Raspberry Pi High Quality Camera

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

6MM WIDE ANGLE LENS

6mm CS-Mount Wide Angle Lens For Raspberry Pi High Quality Camera


Wider Field Of View


Fitting To The Camera

Fitting The Lens To Raspberry Pi High Quality Camera (C-CS Adapter Should Be Removed)

6mm-Wide-Angle-Lens-for-Pi-details-5.jpg 6mm-Wide-Angle-Lens-for-Pi-details-7.jpg

Working With Raspberry Pi

6mm-Wide-Angle-Lens-for-Pi-details-9.jpg 6mm-Wide-Angle-Lens-for-Pi-details-11.jpg

Lens Selection


6mm Wide Angle Lens
16mm Telephoto Lens
25mm Telephoto Lens
35mm Telephoto Lens
8-50mm Zoom Lens
IMAGE FORMAT 1/2" 1" 2/3" 1" 1/2.3"
FOCAL LENGTH 6mm 16mm 25mm 35mm 8-50mm
APERTURE F1.2 F1.4-16 F1.4-16 F1.7-16 F1.4
MOUNT CS-mount C-mount
ANGLE OF VIEW 63° 1"      44.6° × 33.6°
2/3"      30.0° × 23.2°
1/1.8"      24.7° × 18.6°
1/2"      21.8° ×16.4°		 2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5°		 1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9°		 45°-5.35°
BACK FOCUS 7.53mm 17.53mm
OPTICAL LENGTH - 67.53mm - - -
DISTORTION - 1"（-0.7%）
1/2"（-0.5%）
1/3"（-0.15%）		 0.05% 0.35% -
M.O.D. 0.20m 0.20m 0.25m 0.30m 0.20m
DIMENSIONS Φ30.00 × 34.00mm Φ39.00 × 50.00mm Φ34.00 × 34.00mm Φ35.00 × 34.00mm Φ40.00×68.30mm
OPERATION Manual aperture adjustment
WEIGHT 53g 133.7g 82g 78g 148g

Resources & Services


Wiki: www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera

PACKAGE CONTENT

Weight: 0.106 kg

  1. 6mm Wide Angle Lens for Pi


SEN04046
