LDR 5528 100MW Ø5MM - 8K~20K OHM

: SEN04034
€0.30
Tax included

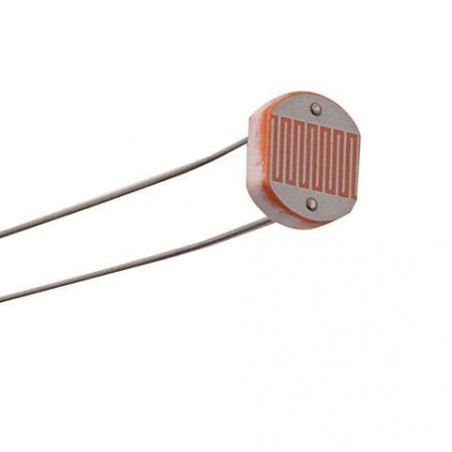

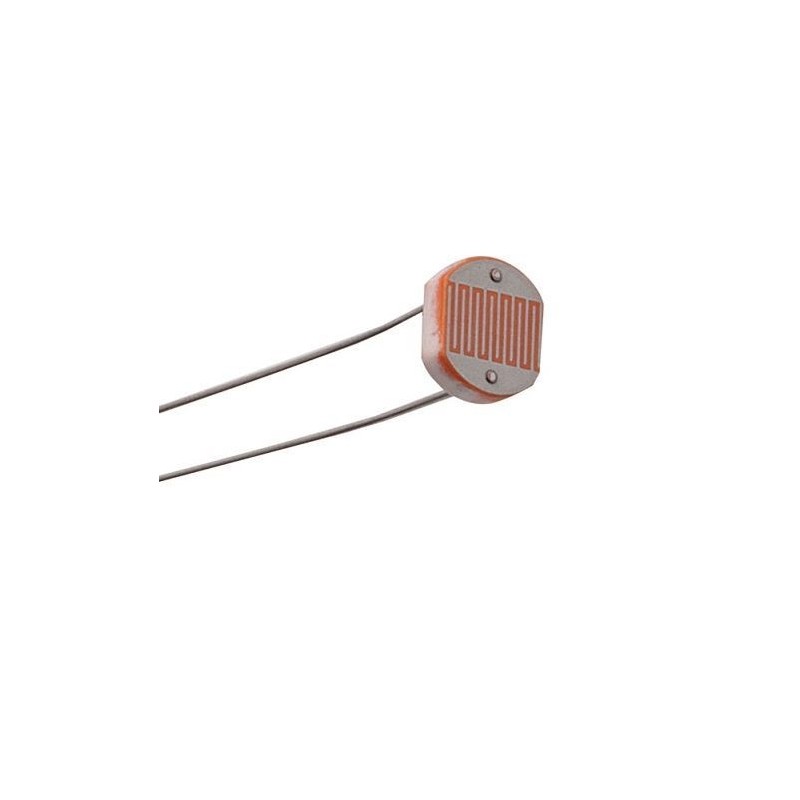

Light Dependent Resistor 5mm 5528 model
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:
This is a regular 5mm light sensor. A photocell changes (also called a photodetector, CdS or photoconductive cell) resistance depending on the amount of light it is exposed to. These little sensors make great ambient light triggers (when light in the room turns on, do something).

Features:
Light resistance (10Lux) : ~8~20K Ohm
Dark resistance : 1M Ohm
Max voltage : 150V
Max power: 100mW
Spectral Peak: 540nm
Model: 5528
Dimensions:
5mm LDR (1.8 x 4.5 x 5mm)
4mm between pins
30mm lead length

SEN04034
