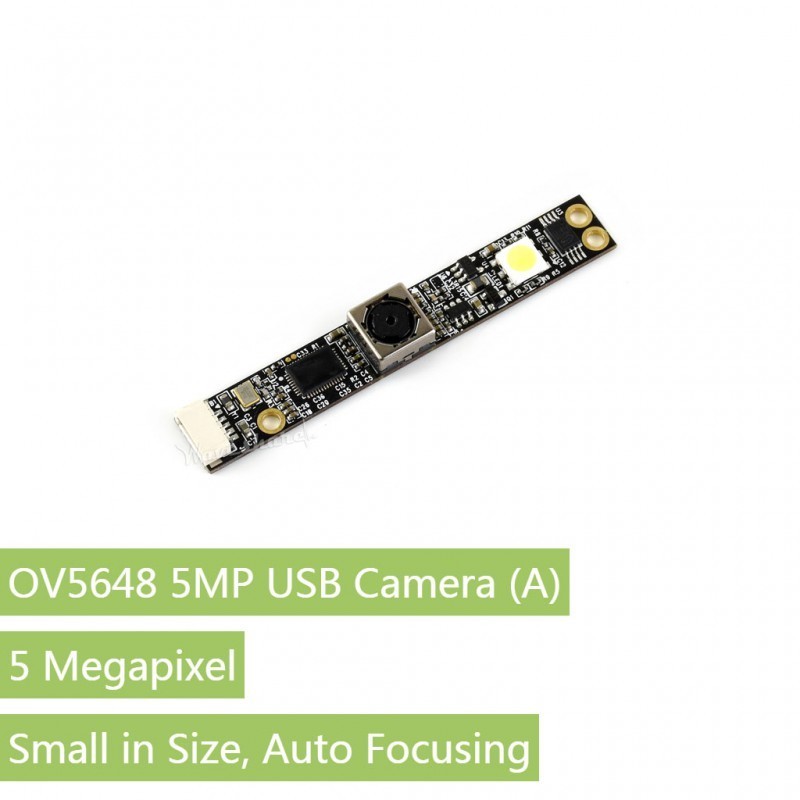

OV5648 5MP USB Camera (A), Small in Size, Auto Focusing

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

• 5 megapixel OV5648 sensor
• 2592x1944 resolution
• USB interface, UVC protocol, auto focusing, driver-free, plug-and-play
• Small in size, easy to integrate into your project
• DSP
  • Automatic white balance (AWB)
  • Automatic exposure (AEC)
  • Automatic gain control (AGC)
• Camera specifications
  • CCD size: 1/4inch
  • Aperture (F): 2.8
  • Focal Length (EFL): 3.34mm
  • Field of View (Diagonal): 70°
• Interface: USB2.0
• Image formats: MJPEG, YUY2
• Operating temperature: 0°C ~ 50°C
• Dimension: 9mmx62mm
• Supported OS: Windows, Linux

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/OV5648_5MP_USB_Camera_(A)

Selection Guide

PACKAGE CONTENT

Weight: 0.03 kg

• OV5648 5MP USB Camera (A) x1
• USB to 5-pin cable x1
