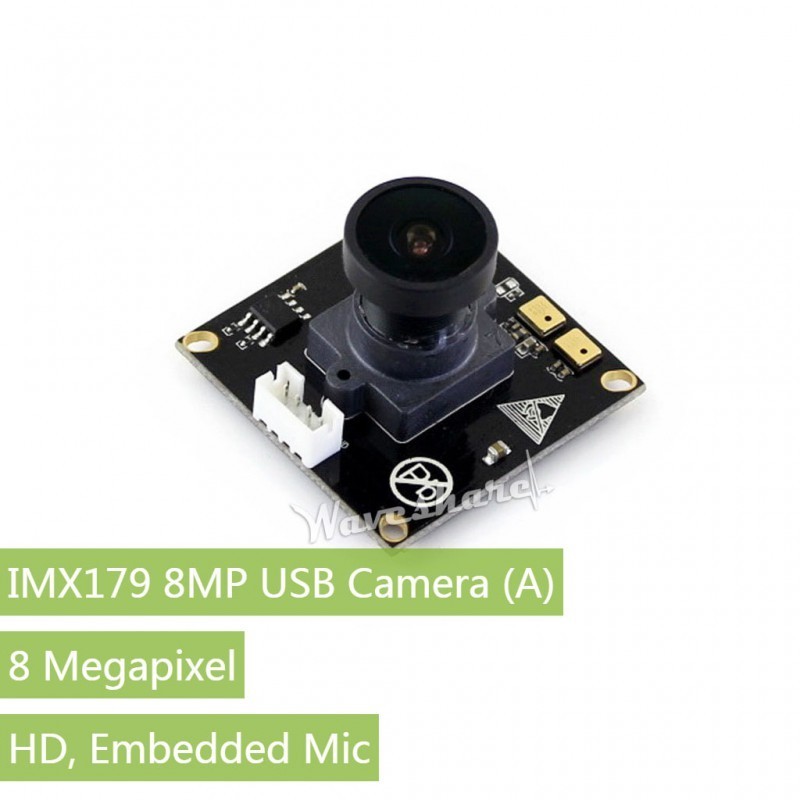

IMX179 8MP USB Camera (A), HD, Embedded Mic

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

• 8 megapixel IMX179 sensor
• 3288x2512 resolution
• USB interface, UVC protocol, driver-free, plug-and-play
• DSP
  • Automatic white balance (AWB)
  • Automatic exposure (AEC)
  • Automatic gain control (AGC)
• Camera specifications
  • CCD size: 1/3.2inch
  • Aperture (F): 1.8
  • Focal Length: 2.8mm
  • Field of View (Diagonal): 145°
• Mic specifications
  • Sensitivity: -26dB (1kHz 1Pa)
• Interface: USB2.0
• Image formats: MJPEG, YUY2
• Operating temperature: 0°C ~ 50°C
• Dimension: 38mmx38mm
• Supported OS: Windows, Linux

Development Resources

Wiki : www.waveshare.com/wiki/IMX179_8MP_USB_Camera_(A)

Weight: 0.049 kg

• IMX179 8MP USB Camera (A) x1
• USB to 4-pin cable x1
