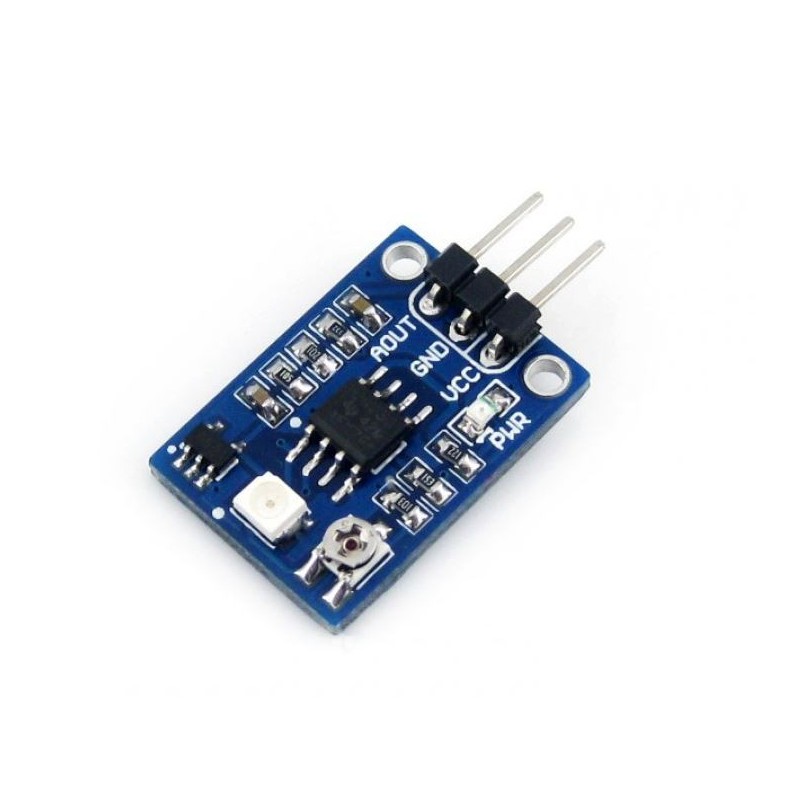

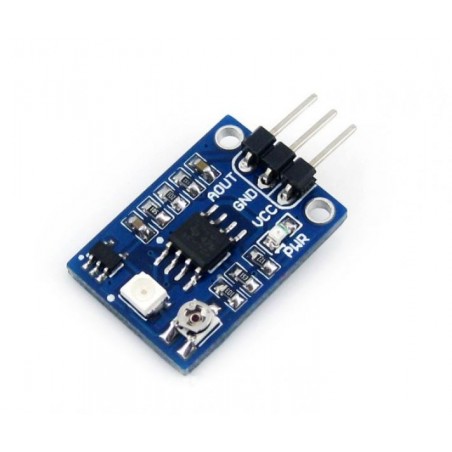

UV Sensor

Description

Overview

• Output voltage boosts along with the ambient ultraviolet intensity increases
• Onboard amplifier circuit with adjustable amplification factor

Specifications

• Response spectrum: 200nm-370nm
• Dimension: 22.0mm * 16.0mm
• Mounting holes size: 2.0mm

Applications

• Ultraviolet tester
• Outdoor ultraviolet detector
• Germicidal lamp

How to Use

In the case of working with a MCU:

• VCC ↔ 3.3V ~ 5.0V
• GND ↔ power supply ground
• AOUT ↔ MCU.IO (analog output)

Photos

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/UV_Sensor

Package Content

Weight: 0.005 kg

• UV Sensor × 1
• 3-pin custom connector jumper wire × 1
