SX1262-LoRa-DTU is a wireless data transfer unit with RS232, RS485, and RS422 interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM).
If you want to know more about this product, please check the WikiPage.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.

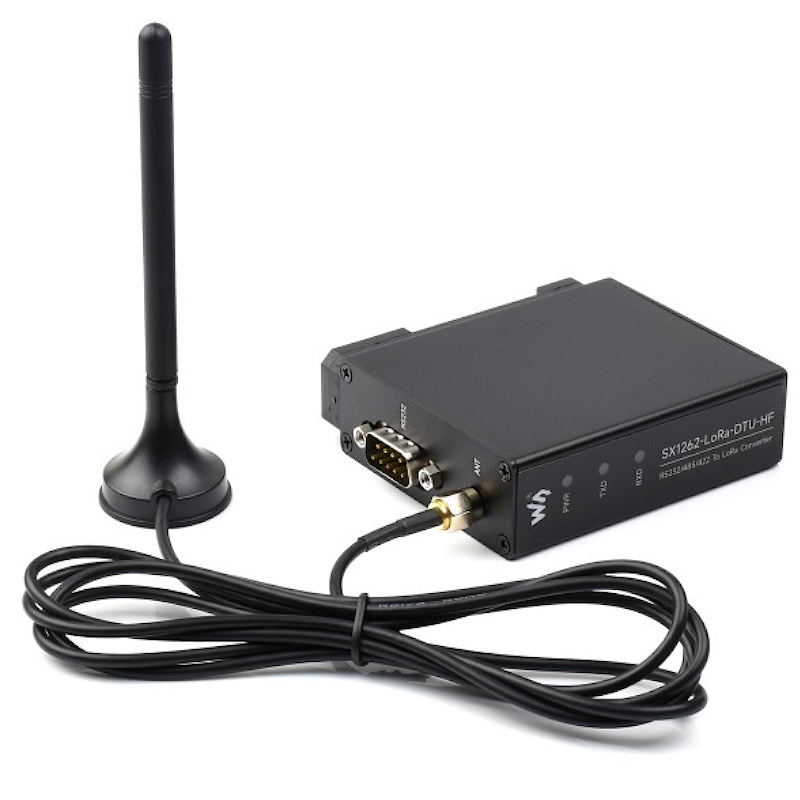

Rail-mount SX1262 LoRa Data Transfer unit, RS232/RS485/RS422 to LoRa, Suitable for Sub-GHz band
Rail-mount SX1262 LoRa DTU
RS232 / RS485 / RS422 to LoRa
Suitable for data acquisition in industry and agriculture
SX1262-LoRa-DTU is a wireless data transfer unit with RS232, RS485 and RS422 interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoints, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industrial standard or non-standard user protocol
Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication
Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power
Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions
Supports LBT sending, RSSI output, AT command configuration
AES communication to ensure data transmission security
Supports multi-level relay networking to increase the wireless communication distance
Supports host configuration and firmware upgrade (support firmware customization for batch order)
Adopts high-quality components such as TCXO to ensure stable operation under harsh working conditions
Comes with development resources and manual
Communication interface |
|
---|---|
Interface |
Screw terminals: RS485 × 1, RS422 × 1 |
RS485 |
Anti-surge, overcurrent protection (reserved 120R balanced resistor header) |
RS232 |
TVS diode, anti-surge and ESD protection |
RS422 |
Anti-surge, overcurrent protection (reserved 120R balanced resistor header) |
Wireless Parameters |
|
Frequency Band |
Sub-GHz (850~930MHz) |
Signal Modulation |
LoRa |
Encryption Type |
AES |
Emit Power |
+22dBm Max |
Reception Sensitivity |
-148dBm |
SERIAL Parameters |
|
Baud Rate |
1200 ~ 115200bps |
Parity Bit |
None, Odd, Even |
Data Bit |
8 ~ 9 bits |
Flow Control |
N/A |
Environmental Requirement |
|
Operating Temperature |
0 ~ 85℃ |
Humidity Range |
5% ~ 95% relative humidity |
Others |
|
Power Supply |
Screw terminals 6 ~ 28V or DC 12V, overcurrent, overvoltage and reverse-proof |
Case |
Aluminum alloy |
Dimensions |
77.0 × 24.0 × 64.2mm |
Support RS232 / RS485 / RS422 to LoRa
* Note: It does not support RS232, RS485, RS422 to LoRa at the same time, and RS232, RS485, RS422 cannot be converted to each other at the same DTU.
Industrial rail-mount design, small in size, easy to install, and cost-effective
For stable performance of communication module
Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling
Sunny weather with an open field, 22dBm emit power, airspeed 0.3kbps,
6dBi magnetic CB antenna, 3m antenna height, 5km distance
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Weight: 0.346 kg
SX1262-LoRa-DTU x1
Magnetic CB antenna x1
Female to female serial cable ~1.5m x1
12V 1A power supply x1
