COB stands for chip-on-board, the LED chip is placed directly on the PCB board, sealed by a sealing layer, and showing different colors through different sealing layers. The COB LED light strip has a linear luminescence and no light spot due to the linear sealing layer, which is the most obvious difference between COB and LED light strips. COB LED strips have the general characteristics of light strips, energy-saving, high flexibility(more flexible than LED strips), high CRI, can be cut, and the 3M adhesive design is easy to install.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.

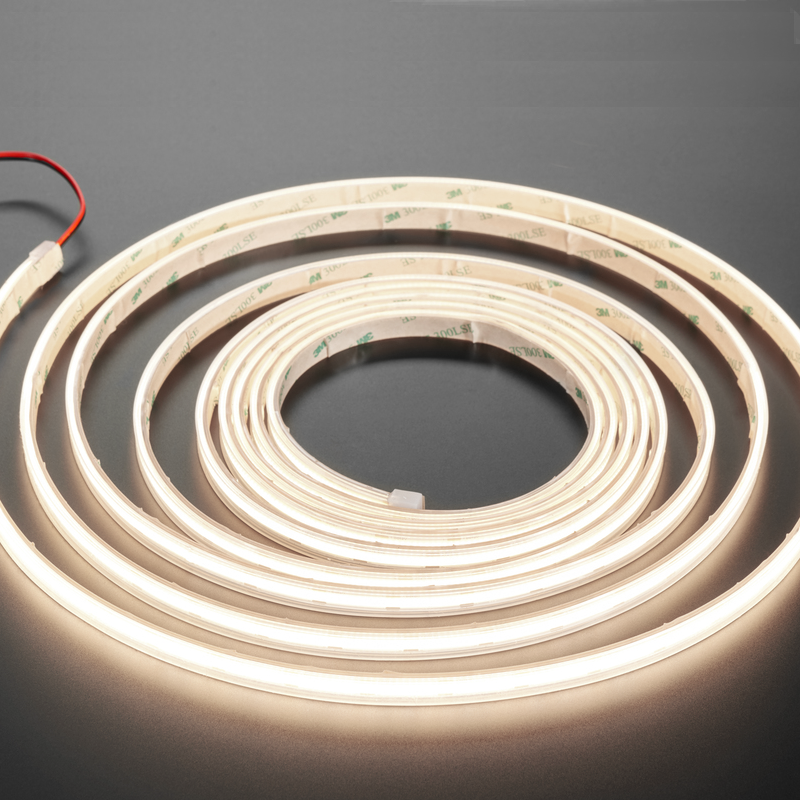

The 12 volt 480 COB LEDs strip is self-adhesive for easy installation. The LED strip light requires a constant current (DC) direct current power supply to power it. The LED strips are dimmable (-Dimmables-).
This COB LED strip has 480 FLIPCHIP chips per meter, with which we achieve uniform light across the entire strip, in addition to having a higher Lm/W performance than traditional SMD LEDs
With its CRI > 90, we make colors look very real. This makes this LED strip perfect for lighting spaces where we want the colors to be perfect.
The LED strip can be cut and joined by the spaces indicated on it (copper union area), always following the relevant instructions, (be careful that the welder maintains brief contact with the strip when soldering it, as excessive heat will damage the driver )
It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops from the direct current that powers the LED strips, although you also have the option of powering the strip from both ends, a more recommended option if you go put 20 continuous meters. To install more continuous meters, it will be necessary to install signal amplifiers for the LED strip.
When placing it, to increase the useful life of the LED strip, it is advisable to use double-sided thermo-dissipative tape, as well as placing it on an aluminum profile, for correct heat management of the LED strip itself.
