Lipo Battery Charger SkyRC e430 2S-4S 30W

: BAT02023
€26.50
Tax included

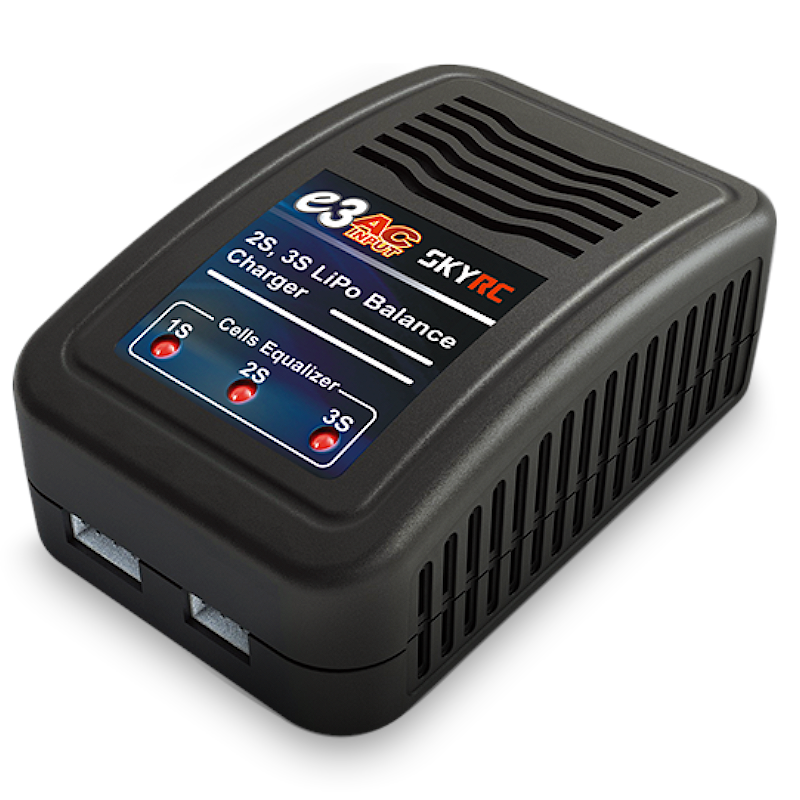

SKYRC e3 Charger is an economic, high quality 100-240V AC balance charger, designed for
charging LiPo batteries from 2-3 cells in balance mode. The circuit power is 11W and max charge
current can reach to 1.2A.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

SkyRC e3 AC balance charger is designed for 2‐3s LiPo battery. Its simpleness and low‐cost make it not only popular in RC world but also find its place in airsoft market.




Explanation of LED Status

Charge Status LED

LED Indicator Charger Status
LED stays green and flashes red The charger is ready to charge
LED glows constant red The charger is charging
LED glows constant green The charging process finishes


Error Message

All LEDs flashes red once and stop 1 second in cycle The battery connects incorrectly
All LEDs flashes red twice and stop 1 second in cycle The charger encounters overload or short circuit
All LEDs flashes red four times and stop 1 second in cycle The voltage of single cell is too high or too low
All LEDs flashes red six times and stop 1 second in cycle There is a 300mv difference of voltage between battery pack



What’s in the Box




Specifications

  1. AC Input: 100-240VC,50-60Hz
  1. Battery Type: LiPo
  1. Cell Count: 2-3 cells
  1. Charge Current: 1.2A Max
  1. Cell Terminate Voltage: 4.2V ± 0.02V
  1. Circuit Power: 11W ± 10%
  1. Dimension: 88x57x35mm
  1. Weight: 103g
BAT02023
