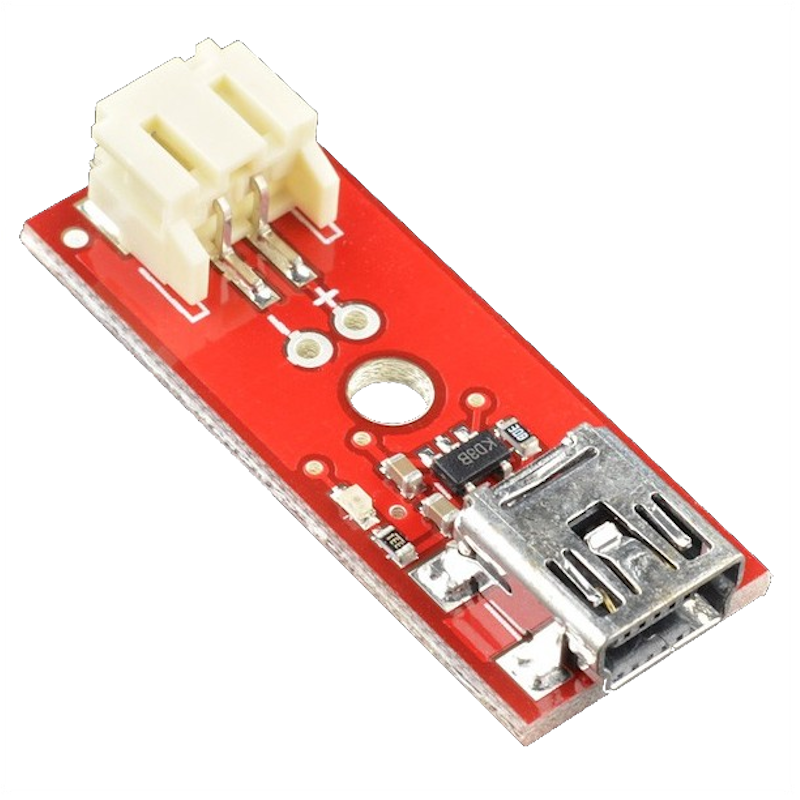

LiPo Charger Basic - Mini-USB
This charger is designed to charge single-cell Li-Ion or LiPo batteries (3,7V). The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a mini-USB connector.
If you need to charge LiPo batteries, this simple charger will do just that. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.
The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a mini-USB connector.
Note: This version uses a mini-USB cable. We also have this charger with a micro-USB connection as well.
Dimensions: 29.4x10.8mm
Documents:
- Schematic
- Eagle Files
- Datasheet (MCP73831T)
