Lithium Battery 3.7V 150mA w/ PH2.0 JST connector

: BAT01081
€5.80
Tax included

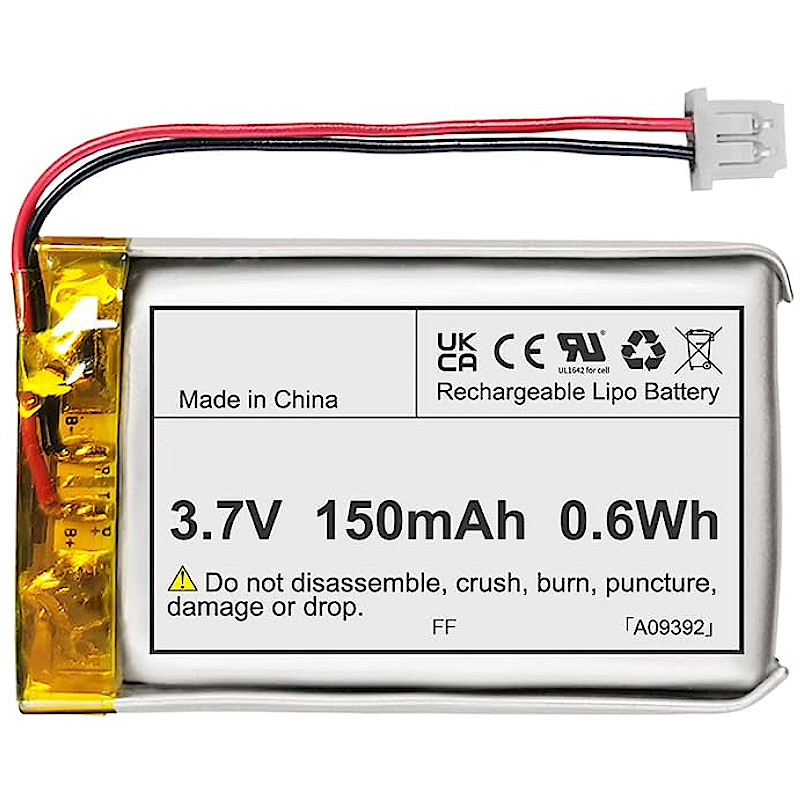

3.7V lithium-ion polymer batteries (also known as 'lipo' or 'lipoly') are thin, light and powerful. The voltage varies from 4.2 V when fully charged to 3.0 V when at the minimum limit. The batteries come with a 2-pin JST-PH2.0 connector soldered as shown and contain a protection circuit.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



  • Type: Lithium Polymer Battery
  • Capacity: 150mAh
  • Rechargeable: Yes
  • Charging voltage: 4.2V
  • Connector: JST PH 2.0
  • Maximum charging current: 150mA
  • Maximum discharge current (peak value): 0.3A
  • Maximum discharge current (constant value): 0.2A
  • Rated voltage: 3.7V
  • Working temperature: -10°~ 50°
  • Dim: 31 x 17.5 x 4.3
BAT01081
