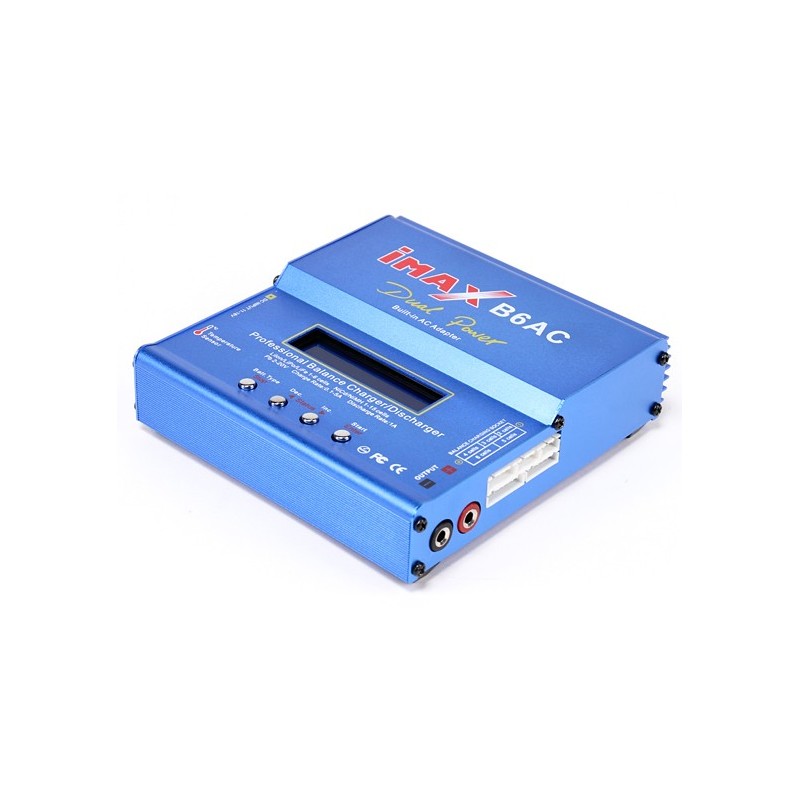

LIPO Battery Charger LBC-011
  • LIPO Battery Charger LBC-011
  • LIPO Battery Charger LBC-011
  • LIPO Battery Charger LBC-011
  • LIPO Battery Charger LBC-011
  • LIPO Battery Charger LBC-011
  • LIPO Battery Charger LBC-011

LIPO Battery Charger LBC-011

: BAT02018
€54.90
Tax included

- Internal independent lithium battery balancer
- Balancing individual cells battery discharging
- Adaptable to various type of lithium battery
- Fast and storage mode of lithium battery
- Automatic charging current limit
- Input power monitoring
- Cyclic charging/discharging

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.





■ Basic Components

Components

Quantity

Charger

B6AC Charger

1

Cable

Cable set for battery connection

1

Cable

Exclusive AC cord (220V)

1



■ Hardware Specification

Weight

575g

Size

135 x 144 x36 mm

Input Voltage

AC input : 100-240Volt

DC input 11-18Volt

Output ability

Circuit power: Max.charge power 50W
Max. discharge power 5W
Charge current range: 0.1-5.0A
Discharge current range: 0.1-1.0A

Compatibility

NiCd/NiMH battery cell count: 1-15cells
Li-ion/Polymer cell count: 1-6cells
Pb battery voltage: 2-20V



■ Warning

- Do not apply heat, water or any other liquid on the battery.

- Do not take the battery apart.

- Do not use damaged batteries. (inflated, deformed, damaged, etc.)

- Do not charge multiple batteries simultaneously.

- When charging, make sure the battery is connected into the correct polarity.

- Do not charge when the battery is hot. Please charge after it has cooled off.

- Do not charge the battery when it is being used by the controller.



■ Compatible Products (for charging)

- LIPO 11.1V Battery Set LBS-10

- LIPO 11.1V Battery Set LBS-11

- LIPO 11.1V 1800mAh LB-12
