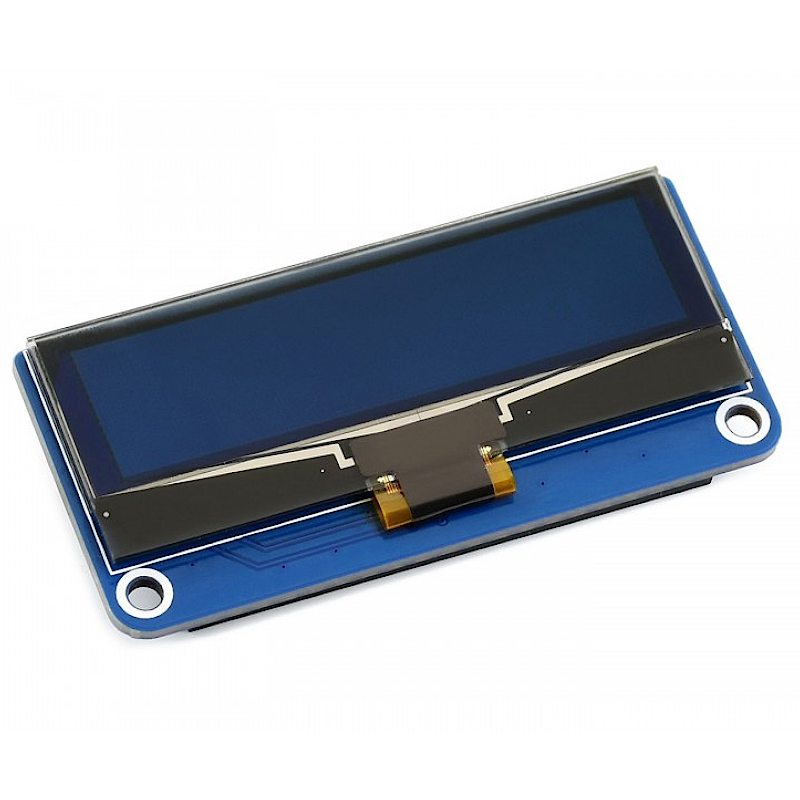

This is a 2.23inch OLED display with a controller. You can directly add it on Raspberry Pi by the 40 PIN pinheader, or connect it to another hardware platform via the IIC and SPI interfaces. The interface of 2.23inch OLED HAT is the default SPI, you can also switch to I2C by soldering the resistors on the back of the OLED.
If you want to know more about this product, please check its Wiki Page.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Optional interfaces: SPI (default), or I2C, configured via onboard resistor
Brings control pins for host boards like Arduino/STM32
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Driver: SSD1305
Interface: SPI / I2C
Display size: 2.23inch diagonal
Display color: white
Resolution: 128×32
Viewing angle: >160°
Power supply voltage: 3.3V/5V
Logic level: 3.3V
SYMBOL |
Raspberry Pi PIN (BCM) |
DESCRIPTION |
---|---|---|
VCC |
3V3/5V |
Power input |
GND |
GND |
Ground |
DIN |
MOSI |
SPI data input |
CLK |
SCLK |
SPI clock input |
CS |
CE0 |
Chip selection, low active |
DC |
P24 |
Data/Command selection (high for data, low for command) |
RST |
P25 |
Reset, low active |
Wiki : www.waveshare.com/wiki/2.23inch_OLED_HAT
Weight: 0.019 kg
