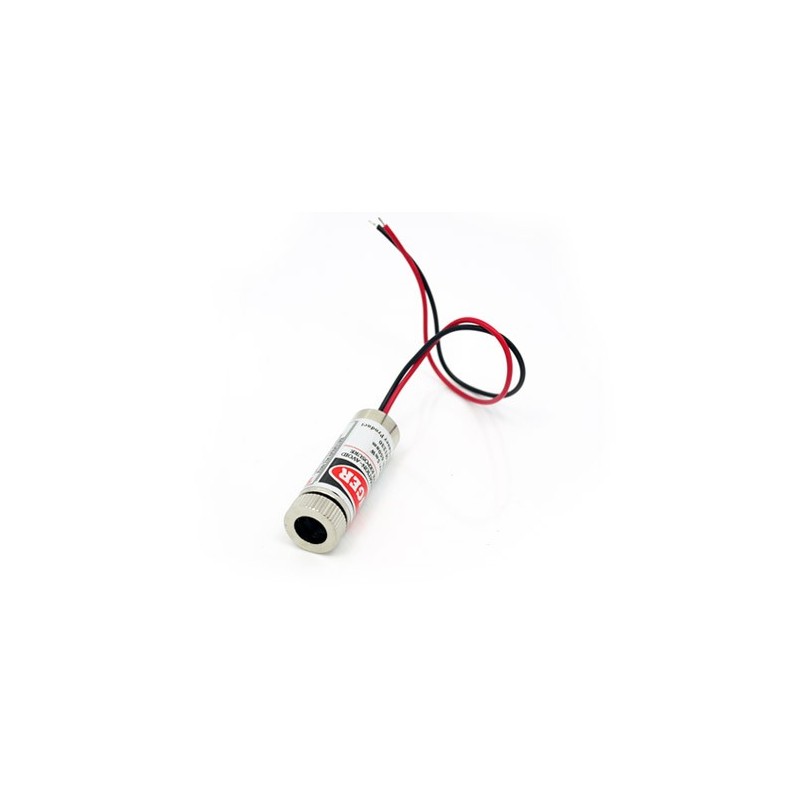

5mW Laser Module emitter - Red Point

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications

Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW

Working current: Min 10mA, Typical 20mA, Max 25mA

Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC

Wavelength: 650nm

Working Temperature: Min -15°C, Typical 25°C, Max 35°C

Storage Temperature: Min -20°C, Max +25°C

Focused Dot width: <2mm spotting 3 meters away.

Outline Dimension: 12mm(Diameter) x 35mm(Length)

Practical test for point head: reflection visible to random target >1000m

Cautions: Class III, avoid direct eye exposure to beams.

Datasheet
