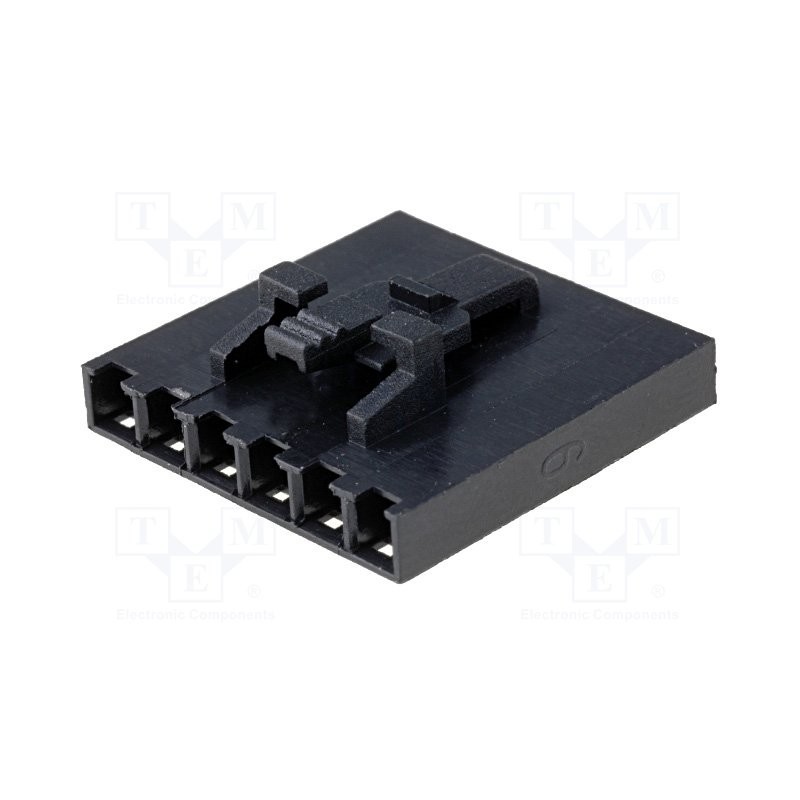

![Plug NGN 2.54mm c / brake - 6 pins Plug NGN 2.54mm c / brake - 6 pins](https://www.botnroll.com/3931-medium_default/plug-ngn-254mm-c-brake-2-pins.jpg)
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Manufacturer | NINIGI |
Connector | plug |
Connector type | wire-board |
Connector type | female |
Number of pins | 6 |
Connector variant | w/o terminals |
Contacts pitch | 2.54mm |
Mechanical mounting | for cable |
Flammability rating | UL94V-0 |
Locking system | latch |
Operating temperature | -25...85°C |
Type of pin configuration | 1x6 |
Max. operating voltage | 250V |
Enclosure material | PBT |
A dimension | 15.2mm |
B dimension | 12.7mm |
