JST connector Kit (2.54mm)

: CON01038
€8.50
Tax included

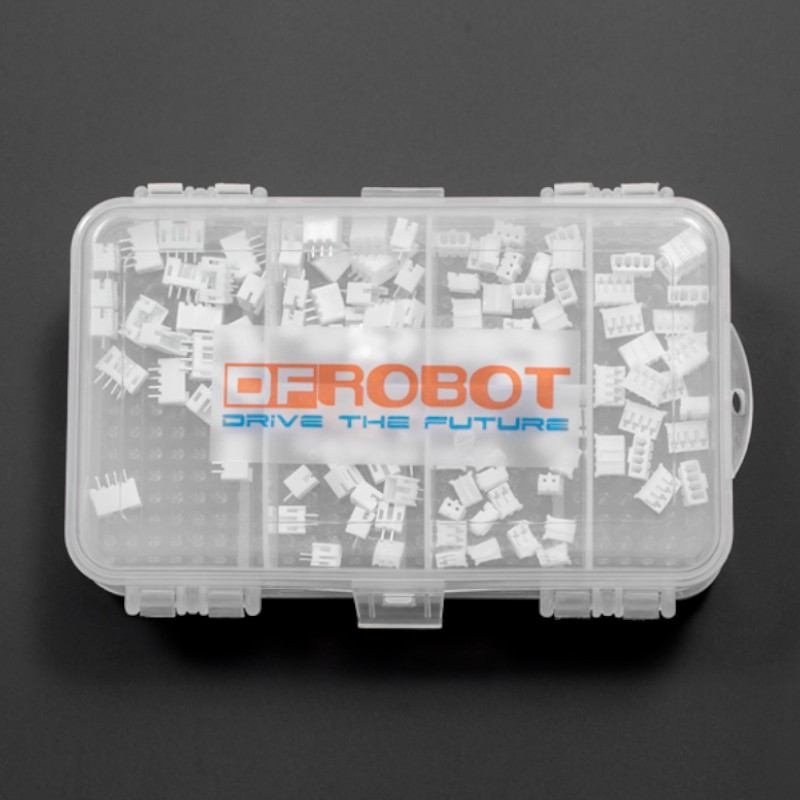

This kit includes JST XHP-2, XHP-3 and XHP-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).


Quantity

Introduction

This kit includes JST XHP-2, XHP-3 and XHP-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).


Specification
  • Current rating:3A AC,DC (AWG #22)
  • Voltage rating:250V AC,DC
  • Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
  • Contact resistance：Initial value/10m Ω max.
  • After environmental testing/20m Ω max.
  • Insulation resistance：1000M Ω min.
  • Withstanding voltage：1000V AC/minute
  • Applicable wire：AWG#30~#22
  • Applicable PC board thickness：1.6mm

Shipping List
  • JST 2.54mm XHP-2 housing*20
  • JST 2.54mm XHP-3 housing*20
  • JST 2.54mm XHP-4 housing*20
  • JST 2.54mm B2B-XH-Athrough-hole type shrouded header *20
  • JST 2.54mm B3B-XH-Athrough-hole type shrouded header *20
  • JST 2.54mm B4B-XH-Athrough-hole type shrouded header *20
  • crimp contact*100
  • Two-sided Compartment Parts Box *1
CON01038
