JST connector Kit (2.0mm)
: CON01037
€8.50
Tax included

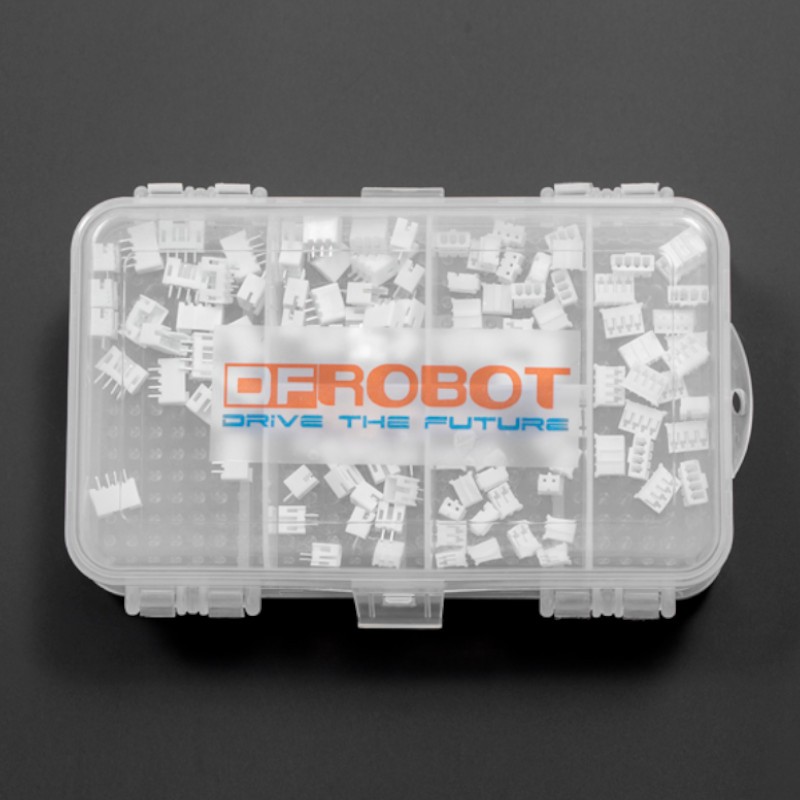

This kit includes PHR-2,PHR-3 and PHR-4 housing (20 units each), through-hole type shrouded header (20 units each)and crimp contact (100 units).
Introduction
This kit includes PHR-2,PHR-3 and PHR-4 housing (20 units each), through-hole type shrouded header (20 units each)and crimp contact (100 units).
Specification
- Pitch:2.0mm
- Current rating:2A AC,DC (AWG #24)
- Voltage rating:100V AC,DC
- Temperature range:-25℃ to +85℃(including temperature rise in applying electrical current)
- Contact resistance:Initial value/10m Ω max.
- After environmental testing/20m Ω max.
- Insulation resistance:1000M Ω min.
- Withstanding voltage:800V AC/minute
- Applicable wire:AWG#32~#24
- Applicable PC board thickness:0.8mm~1.6mm
Shipping List
- PHR-2 housing*20
- PHR-3 housing*20
- PHR-4 housing*20
- B2B-PH-K-S through-hole type shrouded header *20
- B2B-PH-K-S through-hole type shrouded header *20
- B2B-PH-K-S through-hole type shrouded header *20
- crimp contact*100
- Two-sided Compartment Parts Box *1
