Study Pack of HUSKYLENS for micro:bit

Reference : PCO07047

€78.90

Tax included

The Study Pack of HUSKYLENS for micro:bit is an HuskyLens extension kit based on micro:bit programming. It is suitable for students aged 8-19. Centered around AI image recognition, the kit is equipped with 7 external modules and 28 cards that are applicable to teaching scenarios.
Focusing on computer science, the tutorial provided for this kit aims to help students learn knowledge related to AI image recognition in an enjoyable and engaging way. In the tutorial, they will explore how the image recognition technology is applied to real-life through projects like face unlocking, AI camera, pet feeding, self-service charging, scanning code payment, target tracking, etc. And each project comes with corresponding teaching cards to help them get started easily.

Quantity

Last items in stock

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Atenção: Este kit não incluí a câmara HUSKYLENS e o micro:bit, que devem ser adquiridos em separado para poderem usufruir dos vários projetos de IA (Inteligência Artificial) aqui indicados

Recomendamos a visita da página wiki do fabricante aqui para ter acesso à lista sempre atualizada de informação e projetos.

O Kit de Inteligência Artificial para HUSKYLENS e micro:bit é um kit de extensão da HuskyLens baseado na programação do micro:bit. É adequado para alunos de 8 a 19 anos. Centrado no reconhecimento de imagem e na Inteligênica Artificial (IA), o kit é equipado com 7 módulos externos e 28 cartões que são aplicáveis a vários cenários de ensino.

Com foco na ciência da computação, o tutorial fornecido para este kit tem como objetivo ajudar os alunos a aprender os conceitos relacionados com o reconhecimento de imagens e Inteligênica Artificial de uma forma divertida e envolvente. No tutorial, eles explorarão como a tecnologia de reconhecimento de imagem é aplicada à vida real por meio de projetos como reconhecimento facial, câmera de Inteligênica Artificial, alimentação de animais de estimação, carregamento self-service, scan de códigos de pagamento, seguimento de um alvo, etc. E cada projeto vem com o correspondente cartão de ensino para ajudá-los na sua abordagem inicial de forma fácil a este novo e fascinante mundo da IA

Study Pack of HUSKYLENS for micro:bit

Características

Uma variedade de Tuturiais: 25 projetos em 12 lições
28 Cartões de Ensino ajudam-te a na primeira abordagem ao mundo da IA e reconhecimento de imagem
Cartões: pessoas, cores, objetos, códigos de barra, etiquetas, QR Codes, seguimento de objectos

Documentos

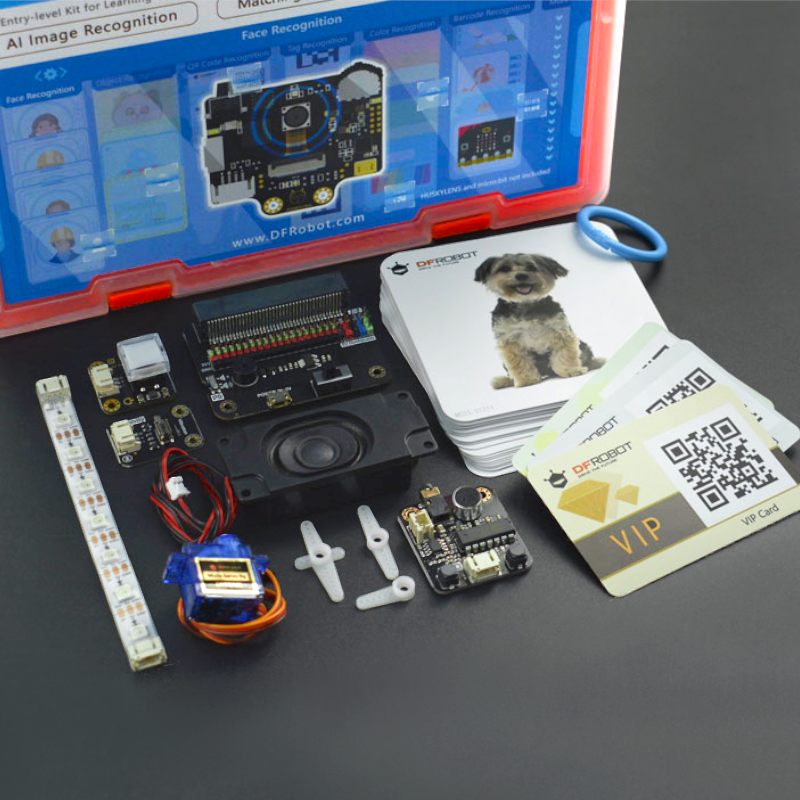

Conteúdo do kit

(Atenção: Este kit não incluí a câmara HUSKYLENS e o BBC micro:bit v2, que são necessários para a execução dos projetos)

IO Extender for micro:bit	Introduction
	Power Supply Voltage:5V IO Expansion Port(3.3V):×18 I2C Interface (3.3V)：×2 HuskyLens-I2C Port(5V)：×1 Buzzer：×1 Dimension：66mm×50.5mm/2.60×1.99"
Micro Vibration Motor Module
	Operating Voltage：5V Interface Type：Digital Control Mode:High-low level/PWM signal Dimension: 30mm×20mm/1.18×0.78"
Voice Recorder Module
	Operating Voltage:5V Recording Time：10 seconds Sampling Frequency: 6.4KHZ Repeatable Recording Times: 100000次 Dimension: 37×35mm/1.46×1.38"
Stereo Enclosed Speaker
	Power:3W Resistance:8Ω Dimension:70mm×30mm×16mm/2.76×1.18×0.63"
Micro Servo
	Operating Voltage4.8V Stall Torque:1.6kg/cm Speed:0.14s/60° Operating temperature:-30 ~ +60 °C Dead Set:5 microseconds Dimension:23mm×12.2mm×29mm/0.9×0.5×1.2"
LED Switch - Blue
	Operating Voltage3.3 V~5 V Interface Type:Digital Usage Method:The button has its own indicator light, which will light up when pressed. Dimension:2.7mm×2.6mm
RGB Full Color LightsWith
")	Operating Voltage:3V~5V Interface Type:PH2.0-3P LED Quantity:7 Dimension:13cm×10mm
Face Card
	Main Usage:HUSKYLENS face recognition function Main Projects:Musical magic mirror, face recoginition access control Number:5 Dimension:9cm×9cm
Color Card
	Main Usage:HUSKYLENS color recognition function Main ProjectsColor Piano Number：7 Dimension:9cm×9cm
Object Card
	Main Usage:HUSKYLENS object recognition function Main Projects:Automatic pet feeder, emergency lane watchdog Number:3 Dimension:9cm×9cm
Barcode Card
	Main Usage:HUSKYLENS barcode recognition function Main Projects:Self-service Supermarket Cash Register Number:3 Dimension9cm×9cm
Label Card
	Main Usage:HUSKYLENS label recognition function Main Projects:Collect Energy Every Day, Encryption and Decryption Number:3 Dimension:9cm×9cm
QR Code Card
	Main Usage:HUSKYLENS QR code recognition function Main Projects:Smart Bus Card Reader Number:3 Dimension:9cm×6cm
Object Classification Card
	Main Usage:HUSKYLENS Object classification function Main Projects:Safety Helmet Reminder Number:4 Dimension:9cm×9cm
Object Tracking Card
	Main Usage:HUSKYLENS object tracking function Main Projects:Target Locator Number:3(All the above cards can be used to track objects) Dimension:9cm×9cm

Projects introduction and tutorial contents

Name	Description
Lesson 1 The Musical Magic Mirror	Used function: Single facial recognition function Project Description:If HUSKYLENS detects that faces learned before are in the screen, it will play the music Jingle Bells. If not, it will play the music Little Star.
Lesson 2 Face Recognition Access Control	Used function:More than one faces recognition function Project Description:If HUSKYLENS detects the face belongs to family members, the door will be opened. If not, it will be closed.
Lesson 3 Colorful Piano	Used Function:Color recognition function Project Description:As each color corresponds to a note, HUSKYLENS will emit different notes according to the color detected by itself.
Lesson 4 Vending Machine for Stray Cats & Dogs	Used Function:Object recognition function Project Description:If HUSKYLENS detects a cat, the feeder will deliver cat food; if it detects a dog, the feeder will deliver dog food.
Lesson 5 Object Tracker	Used Function:Object tracking function. Project Description: When HUSKYLENS detects an object it learned before, the X and Y coordinates of the target will be displayed on the screen.
Lesson 6 Self-service Cashier	Used Function:Barcode recognition function Project Description:As the barcode stores the name and price of its corresponding product, the total price can be calculated by scanning the barcode with HUSKYLENS.
Lesson 7 Energy Harvest	Used Function:Label recognition function Project Description:If HUSKYLENS detects a learned label, it will generate a random number. When the sum of the random number is greater than 50, the music will be played.
Lesson 8 Smart Bus Ticketing Machine	Used Function:QR code recognition function Project Description:Different QR codes correspond to different charging standards. After passengers paying the fare, "Payment is successful, please get on the bus" will be broadcasted.
Lesson 9 Safety Helmet Reminder	Used Function:Object classification function Project Description:When HUSKYLENS detects the worker wearing the safety helmet, it will allow him to enter. Or it won't let them in.
Lesson 10 Decrypt Binary	Used Function:Label recognition function Project Description:Get binary: get binary numbers by recognizing tag cards.Binary to decimal: convert the obtained binary numbers to decimal and display it on HuskyLens screen.
Lesson 11 Huskylens Camera	Used Function:HUSKYLENS Camera function Project Description:Use the camera function of HUSKYLENS to realize touch photography, voice control photography, and time-lapse photography.
Lesson 12 Emergency Lane Watchdog	Used Function:Object recognition funtion Project Description:When detecting a vehicle in the emergency lane, HUSKYLENS will take a picture of it and warn the vehicle to leave quickly.
