Kit Breadboard + 65 Jumper Wires + Power Supply Module + 140PCS Wires

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

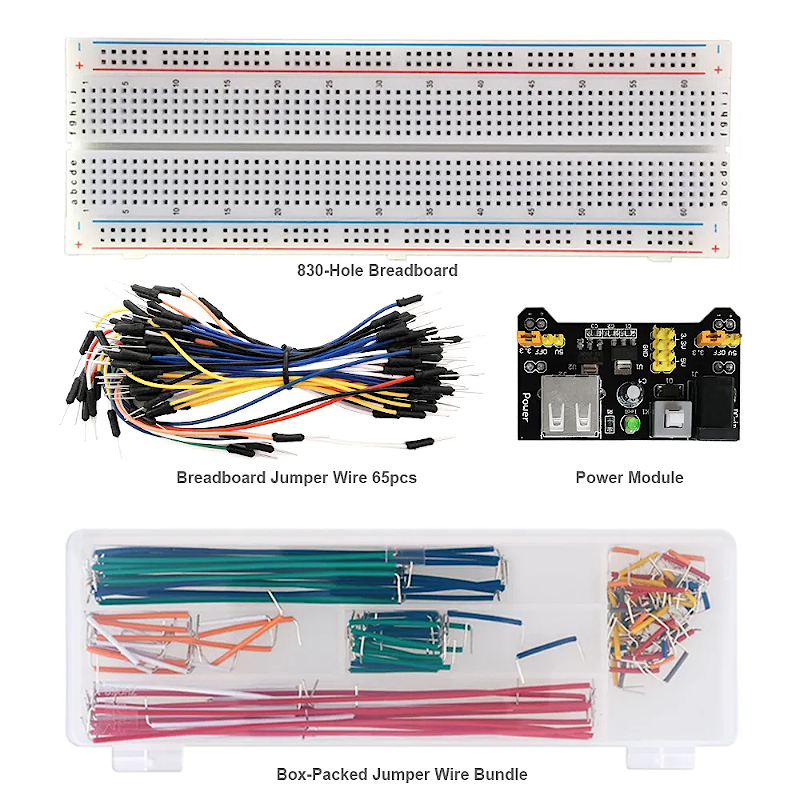

This kit includes a breadboard power module, a 830 Tie-Points breadboard, breadboard wire pack of 65pcs,and 140 jumper wire bundle.

Solderless Breadboard 830 Tie-Points

It consists of 630 Tie-Point Terminal Strip and 200 Tie-Point Power Strip.




Features:

1. 1) Solderless Breadboard - 830 Tie Points consists of: 630 Tie-Point Terminal Strip, 200 Tie-Point Distribution Strips.

2. 2) 126 separate 5 point terminals, plus 4 horizontal bus lines (Power Lines) of 50 test points each.

3. 3) Each point is identified with letters across the top and number down the side

4. 4) Pins are identified by numbered rows and columns

5. 5) Use to breadboard and debug circuit designs

6. 6) Low static, plastic body

7. 7) Breadboard size: 165mm (L) x 55mm (W)

8. 8) This white breadboard has a self-adhesive on the back.

keyestudio Breadboard Power Module

This keyestudio breadboard power module comes with 5V and 3.3V DC Output PIN, easy for external use. When using it, you can directly plug it on breadboard.

Parameters:

1. Input voltage: 6.5-12V (DC) or USB power

2. Output voltage: 3.3V and 5V can be switched

3. Maximum output current: <700ma

4. Two-way independent control, can be switched to 0V, 3.3V and 5V.

Features:

1. 1) Male to Male Connector

2. 2) Comes as one pack of 65 jumper wires with an assortment of colors and length.

3. 3) Perfect design for breadboards and Arduino.

4. 4) Easy to build your own circuitry on breadboard.

Description：

The jumper wires are pre-cut and bent in right angles at the ends, so you can choose the appropriate length for your application and plug away without wiring getting messy and out of hand.
Included with this kit are 14 various lengths of 22AWG wire - 3, 5, 8, 10, 13, 15, 19, 21, 23, 26, 51, 77, 103, and 126mm - 10 pieces of each.



Includes:

1. 10x Jumper Wire - 126mm

2. 10x Jumper Wire - 103mm

3. 10x Jumper Wire - 77mm

4. 10x Jumper Wire - 51mm

5. 10x Jumper Wire - 26mm

6. 10x Jumper Wire - 23mm

7. 10x Jumper Wire - 21mm

8. 10x Jumper Wire - 19mm

9. 10x Jumper Wire - 15mm

10. 10x Jumper Wire - 13mm

11. 10x Jumper Wire - 10mm

12. 10x Jumper Wire - 8mm

13. 10x Jumper Wire - 5mm

14. 10x Jumper Wire - 3mm

Package Included

1. Keyestudio 830 Tie-Points Breadboard x1

2. Breadboard Power Module x1

3. Breadboard Wire Pack of 65 x1

4. 140 Jumper Wire Bundle x1
