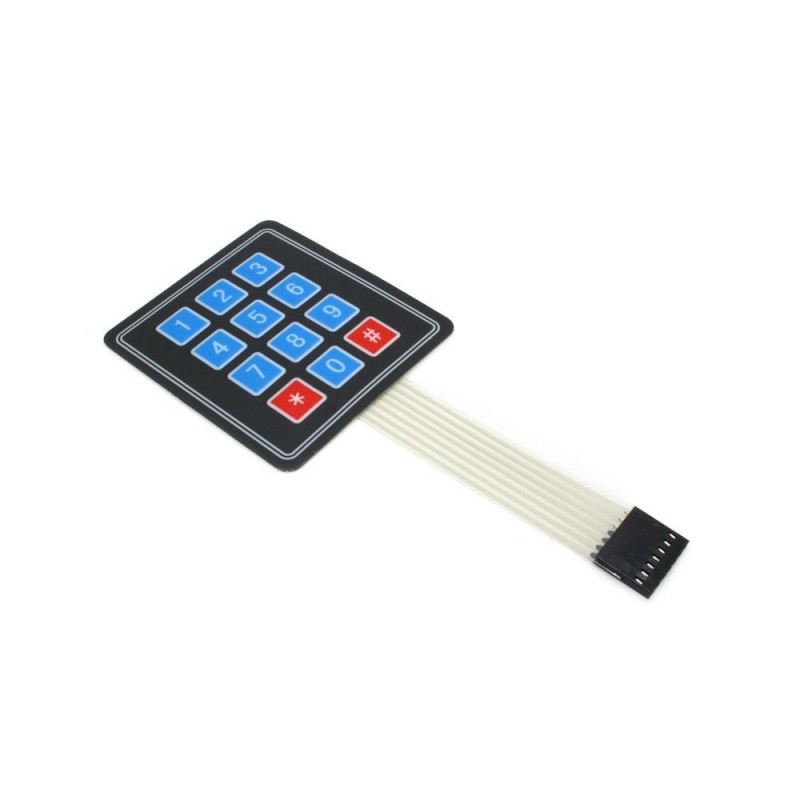

Sealed Membrane 4X3 Button Pad with Sticker
  • Sealed Membrane 4X3 Button Pad with Sticker
  • Sealed Membrane 4X3 Button Pad with Sticker
  • Sealed Membrane 4X3 Button Pad with Sticker

Sealed Membrane 4X3 Button Pad with Sticker

: LCD02007
€4.90
Tax included

This is a new four by three matrix twelve key membrane switch keypad that is easy to use and will look nice in your project.It is very useful if you need it for prototyping with a breadboard or just need a keypad for your project.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This is a new four by three matrix twelve key membrane switch keypad that is easy to use and will look nice in your project.It is very useful if you need it for prototyping with a breadboard or just need a keypad for your project.

Specification

  • Pad Size: 77 x 70 x 0.8mm
  • Transparence cable length: 86mm
  • Connector: 7 pins (Pitch 2.54mm)
  • Mounted: Adherence
  • Maximum Circuit
  • Rating: 35VDC, 100mAa
  • Insulation Resistance: 100M Omh, 100V
  • Dielectric Withstand: 250VRms (50-60Hz, 1min)
  • Contact Bounce: <=5ms
  • Life Expectancy: 1 million closures
  • Operation Temperature: 0 to +70 centigrade
  • Humidity: 40 centigrade, 90%-95%, 240 hours
LCD02007
