Advanced study kit with UNO R3 for Arduino Starter - Keyestudio KS0075

: ARD04034
€51.95
Tax included

Arduino advanced study kit walks you through the basics of using the Arduino in a hands-on way. You'll learn through building several creative projects. The kit includes a selection of the most common and useful electronic components as well as the Arduino UNO R3 and a book of 21 projects. Starting the basics of electronics, to more complex projects, the kit will help you control the physical world with sensor and actuators.

If you want to know more about this product, please check the Wiki Page

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview:





Keyestudio REV4 is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The REV4 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 programmed as a USB-to-serial converter.



format,webpformat,webpformat,webp

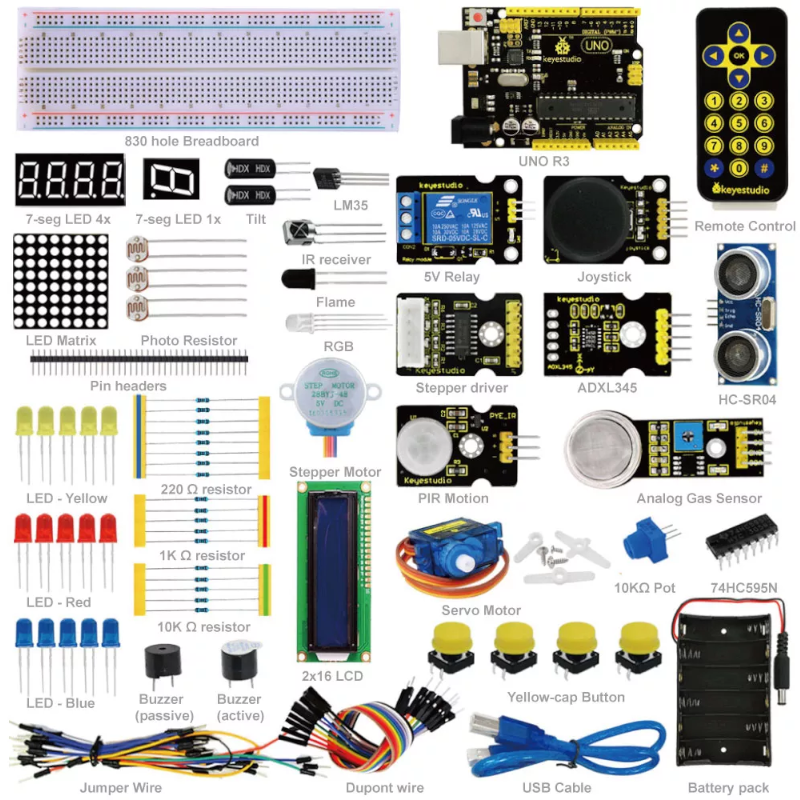

Components List

5x LED - Blue
5x LED - Red
5x LED - Yellow
1x LED - RGB
8x 220 Ω resistor
5x 10K Ω resistor
5x 1K Ω resistor
1x 10K Ω Pot
1x Buzzer (active)
1x Buzzer (passive)
4x Large button switch
2x Ball tilt sensor
3x Photo Resistor
1x Flame sensor
1x LM35 Temp Sensor
1x IC 74HC595N 16-pin DIP
1x 7-seg LED 1x module
1x 7-seg LED 4x module
1x 8*8 LED Matrix
1x 2x16 LCD display
1x IR receiver
1x IR remote control
1x Servo Motor
1x Stepper driver module
1x Stepper Motor
1x Joystick module
1x Relay module
1x PIR Motion Sensor
1x Analog Gas Sensor
1x ADXL345 Three Axis Acceleration Module
1x HC-SR04 Ultrasonic Sensor
40x Pin headers
1x 830 hole Breadboard
10x Dupont connector wires
30x Jumper Wire
1x 6-cell AA Battery pack
1x USB cable
1x Resistance color ring meter
1x Arduino UNO R3



Features:

1. Microcontroller core: AVRmega328P-PU ( Processing speed 20MIPS)

2. Working voltage: +5V

3. External input voltage：+7V~+12V（suggest）

4. External input voltage ( extremum ): +6V≤ Vin ≤ ＋20V

5. Digital signal I/O interface: 14 ( 6 PWM input interface)

6. Analog signal input interface: 6

7. DC I/O interface current: 40mA

8. Flash capacity: 32KB( other 2k used in hootloader)

9. SRAM static storage capacity

10. EEPROM storage capacity: 512bytes

11. Clock frequency：16MHZ



Documents:

Wiki Page Tutorial

Tutorials

ARD04034_projects.pdf
