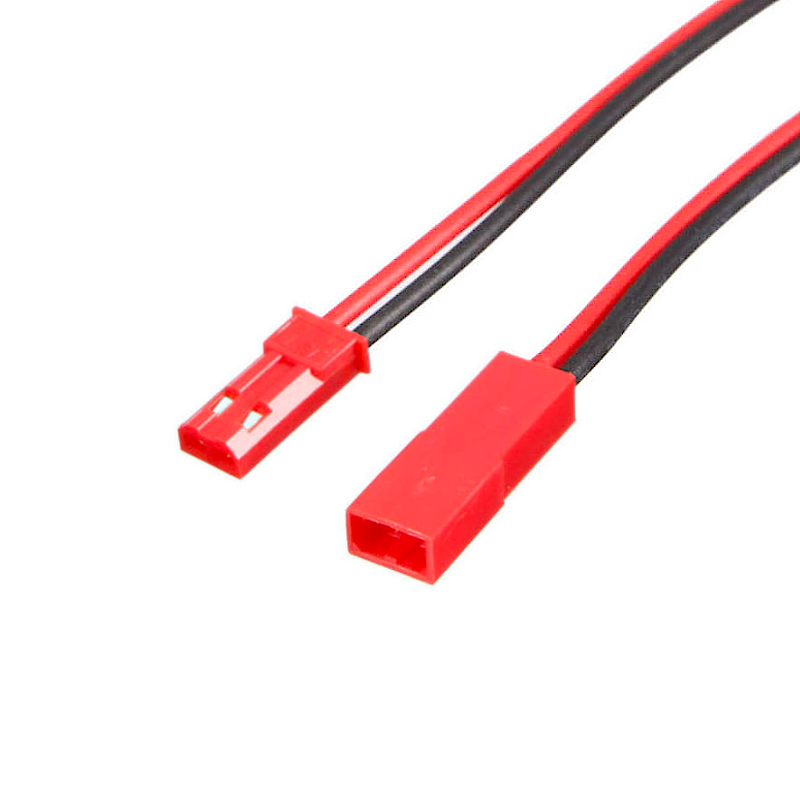

JST Cable kit Male-Female - 10cm

: CAB08037
€0.40
Tax included

The RCY connector is a compact, 2.5 mm
pitch wire-to-wire connector for use with
a variety of circuits, from signal circuits to
power supply circuits, in electrical equipment
which is becoming more and more compact.
The employment of a free spring contact
method ensures stable contact performance,
and superb working efficiency of insertion
and removal.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features
● Use of a free spring contact for superb creep
characteristics
The contact section features a free spring contact
construction, which effectively minimizes stress (creep)
caused by repeated insertion and removal at high
temperatures. Connector insertion and removal is also
smooth, ensuring stable connection performance.


● Compact design
The RCY connector is designed to be compact. When mated,
its overall length is just 23.3 mm and its thickness is 4.0 mm.
● Housing lock
Because a lock is provided inside the housing, external force
is not applied to the lock.

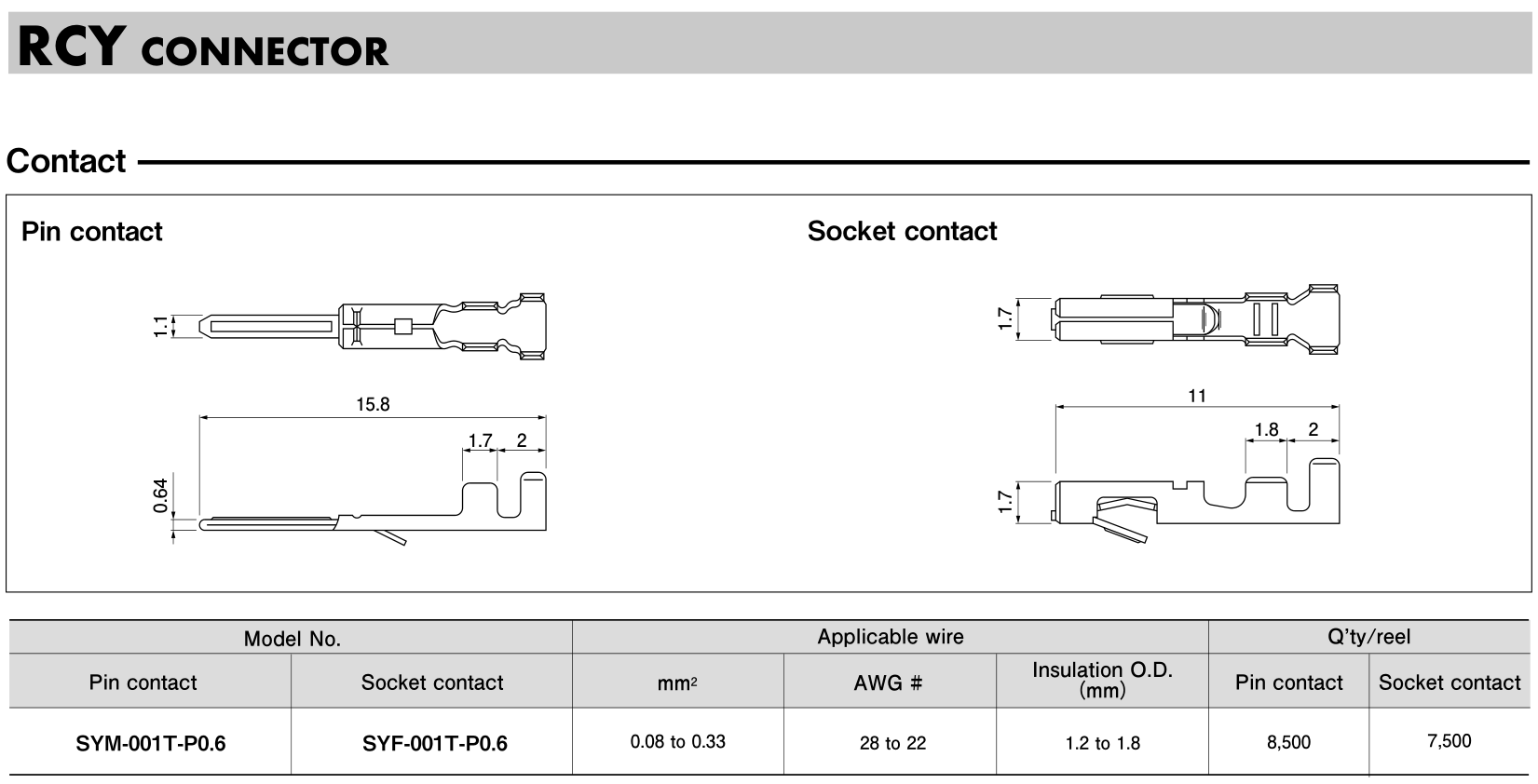

Specifications
• Current rating: 3 A AC/DC
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃
( including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 500 MΩ min
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #28 to #22
0.08 to 0.33 mm2
* In using the products, refer to "Handling Precautions for Terminals
and Connectors" described on our website (Technical documents
of Product information page).
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
Note: The current rating varies depending on the wire size used
in each connector.
The table below lists the current rating as a function of
the wire size.



CAB08037
