PoE Expansion Board For Jetson Orin Nano/NX - Waveshare 27439

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

 Features At A Glance

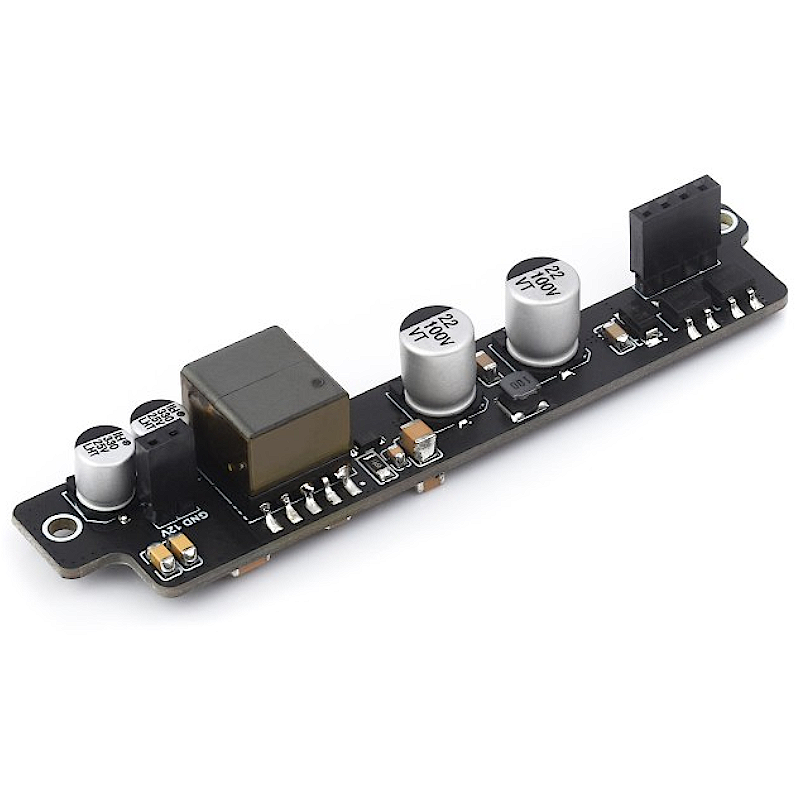

The JETSON-ORIN-POE-MODULE is a mini 802.3af-compliant Power Over Ethernet accessory for the NVIDIA Jetson Orin Nano/NX. By using this small module and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Orin board in only one Ethernet cable.

1. Suitable for Jetson Orin Nano / Jetson Orin NX

2. PoE (Power Over Ethernet) capability, IEEE 802.3af/at-compliant

3. Fully isolated switched-mode power supply (SMPS)

4. Smaller and more flexible with a more compact component layout

Specifications

Suitable for Jetson boards

Suitable for Jetson Orin Nano / Jetson Orin NX

Note: the PoE pin header of Orin Nano/NX baseboard needs to be pre-soldered before connecting the PoE module.

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Jetson Orin In One Cable

* for reference only, the Jetson Orin Nano board and Switch are NOT included.

What's Onboard

Note: since the PoE board is small and the temperature of transformer will be high when working, please do not touch the transformer and consider adding extra cooling solution when using this module.

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-ORIN-POE-MODULE

Package Content

Weight: 0.014 kg

1. JETSON-ORIN-POE-MODULE x1

2. 40PIN male pinheader x1

3. Screws pack x1

4. Mini cross wrench sleeve x1
