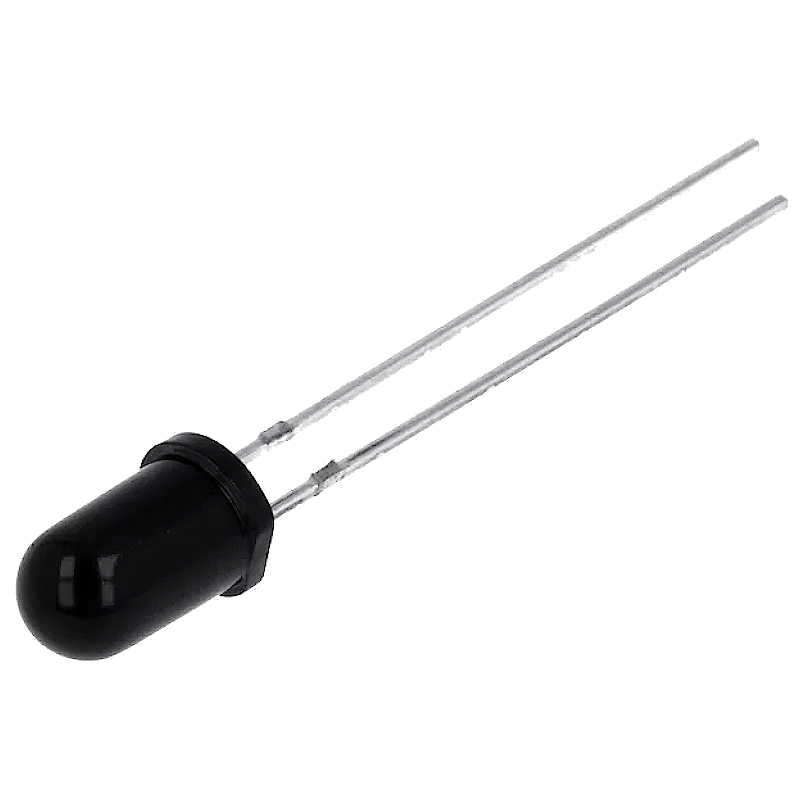

The 503PD is a high speed and high sensitive PIN photodiode. Due to its black epoxy the device is sensitive to near and infrared radiation.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
|
Manufacturer
|
LUCKYLIGHT |
|
|
Type of photoelement
|
PIN IR photodiode |
|
|
LED diameter
|
5mm |
|
|
Mounting
|
THT |
|
|
Wavelength of peak sensitivity
|
940nm |
|
|
Wavelength
|
700...1200nm |
|
|
Max. off-state voltage
|
35V |
|
|
Turn-on time
|
45ns |
|
|
Turn-off time
|
45ns |
|
|
Dark current
|
2nA |
|
|
Front
|
convex |
|
|
LED lens
|
black |
|
|
Radiant power
|
150mW |
