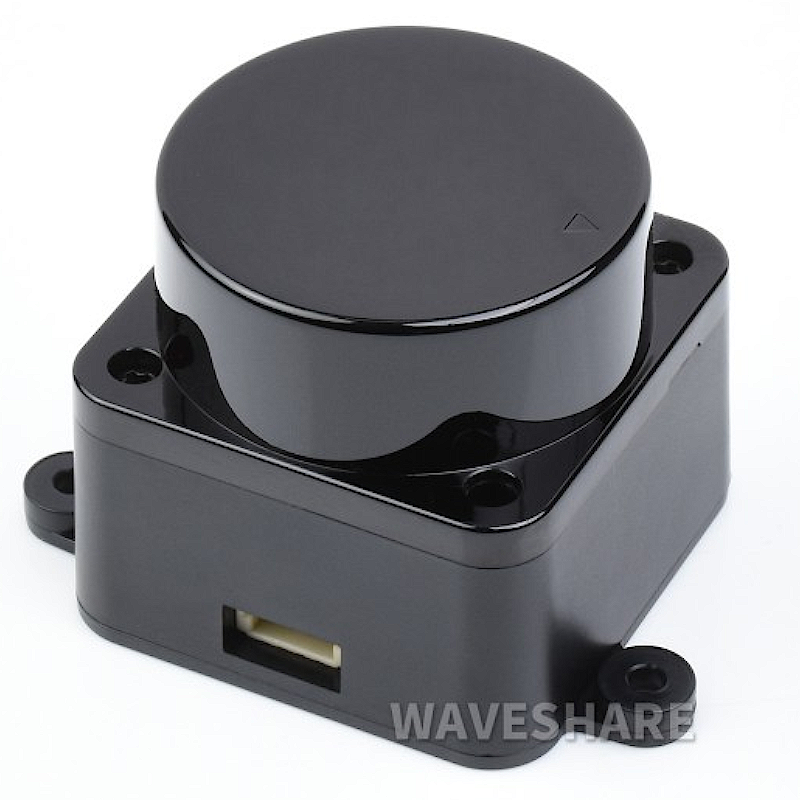

STL-19P Lidar dToF with USB Adapter, 360° 12m Radius, UART - D500 LiDAR Kit

Reference : SEN03086

€98.90

Tax included

The D500 LiDAR Kit is a laser measurement sensor based on DTOF technology, capable of 360° scanning with a range of up to 12 meters. With a data collection frequency of 5000Hz and communication via UART, it is ideal for applications such as autonomous navigation, gesture recognition and 2D mapping. This device is resistant to ambient light interference of up to 60,000Lux, is compact and complies with FDA Class 1 laser safety standards.

If you want to know more about this product, check out its Wiki Page.

Quantity

Last items in stock

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications

Ranging Distance	0.03 ~ 12.00m
Ranging Average Accuracy	±10 mm (within 0.03 ~ 0.5m) ±20mm (within 0.5 ~ 2m) ±30mm (within 2 ~ 12m)
Scanning Frequency	6 ~ 13Hz (Typ 10Hz)
Scanning Angle	360°
Ranging Frequency	5000Hz
Wavelength	895 ~ 915 nm (Typ 905)
Communication Interface	UART @230400
Ambient Light Tolerance	60KLux
Power Supply	5V
Power Consumption	1.45W
Operating Current	290mA
Weight	45g
Operating Temperature	-10 ~ 45°C
Lifetime	10000+ hours
Dimensions (L × W × H)	54.00 × 46.29 × 35.00mm

DTOF (Direct Time of Fight) Ranging Technology

Adopting DTOF (Direct Time of Fight) ranging technology, measuring distance according to the time-of-flight of the laser pulse, within the effective detection distance of 12m, the radar ranging accuracy will not change with the distance, and can reach the measurement accuracy of ±30 mm. With efficient algorithm logic to achieve 360 degrees detection of robot, autonomous mapping, and obstacle detection...

Long Lasting Lifetime

Brushless motor, quiet without Friction, the lifetime can reach 10000+ hours

360° Omni-Directional Laser Scanning

Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the surrounding environment and the point cloud information of the location of obstacles

12m Ranging Radius

Ensuring the large-area cruising and mapping capabilities of robots

Anti-strong light interference

Rigorous optical design and powerful chip can effectively avoid strong light interference, and can resist the strong light environment of 60000Lux, which can achieve indoors and outdoors high-frequency and high-precision distance measurement and accurate mapping

Exquisite, Compact, Stylish Appearance

It adopts a compact structure design, stylish appearance, smaller size, lower power consumption, and can be embedded inside the robot to reduce its size and improve its passability

Laser Safety FDA Class 1

To ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating
