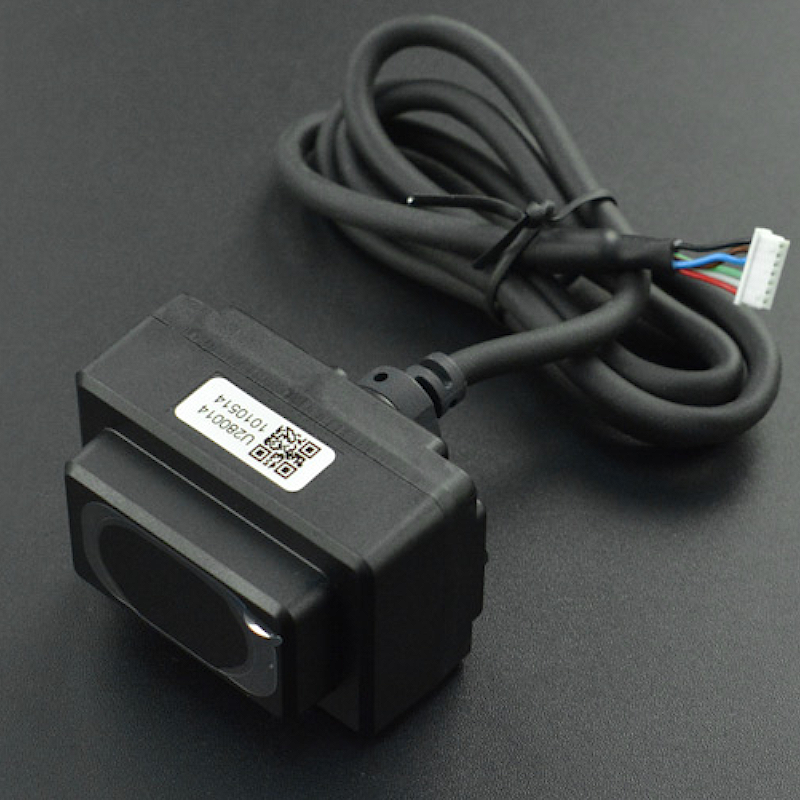

TFmini-i Industrial ToF Single-Point Ranging Solid State LiDAR Sensor (12m, RS485, IP65) - DFRobot SEN0505

TFmini-i LiDAR is an industrial-grade small single-point solid state LiDAR. Its maximum detection range can reach up to 12m and it has an adjustable frame rate with a maximum of 1KHz.

More Suitable for Industrial Application

1. Compatible with RS485 interface

2. Supports Pix and customised output protocols

3. Optimised compensation algorithms for bright light and temperature to work well in different environments

More Stable & Safer

1. Has a PC/ABS/PMMA enclosure with IP65 water and dust resistance.

2. Supports a wide range of input voltages (7-30V) and reduce the damage caused by voltage fluctuations.

3. With reverse protection to protect the internal circuit.

4. Passing drone-level vibration tests.

Small Size & High Performance

Inheriting the advantages of the TFmini's small size. This ToF Single-Point Ranging Sensor is only 50mm*34mm*41mm , but it brings us excellent performance and can be flexibly and easily integrated into various small smart devices.

Easy to Use

The TFmini-i ToF single-point ranging sensor can be used on the Arduino UNO R3 through the TTL to RS485 Shield, and it can also be used on the Raspberry Pi through the USB to RS485 module. Those two ways provided by DFRobot can make TFmini-i LiDAR easier to use.

How does TFmini-i LiDAR work?

TFmini-i is a TOF single point solid state LiDAR, which is based on Pulse Time of Flight (PTOF).It adopts an incoherent energy receiving mode, and the detection is mainly based on Pulse counting. TFmini-i emits a narrow pulse laser, which is collimated by the transmitting lens to form a collimated light, which enters the receiving system after being reflected by the measured target and is focused on the APD detector by the receiving lens. The time between the transmitted signal and the received signal is calculated through the circuit amplification and filtering, and the distance between TFmini-i and the measured target can be calculated through the speed of light.

Schematic diagram of TFmini-i

1. Wide range of input voltages (7-30V) with reverse protection

2. RS485 interface communication

3. Adjustable frame rate with a maximum of 1KHz

4. Medium range detection (0.1 to 12m)

5. IP65 protection for industrial application

6. Compatible with Arduino UNO R3 and Raspberry Pi

1. Detection of vehicle and pedestrian

2. Vehicle collision avoidance and safety warning systems

3. UAV assisted takeoff and landing

4. Altimeter

Product Performance

1. Operating Range:

   1. 0.1-12m@90% reflectivity

   2. 0.1-7m@10% reflectivity

   3. 0.1-12m@90% reflectivity & 70Klux

   4. 0.1-7m@10% reflectivity & 70Klux

2. Accuracy: ±6cm (0.1~6m), ±1% (6~12m)

3. Distance resolution: 1cm

4. Frame rate: 100Hz

5. Ambient light immunity: 70Klux

6. Operating temperature: -20~60℃

7. Enclosure rating: IP65

Optical Parameters

1. Light source: VCSEL

2. Central wavelength: 850nm

3. Photobiological safety: Class1（EN60825）

4. FOV (Field of view): 2°

Electrical Parameters

1. Supply voltage: 7~30V

2. Average current: ≤65mA@12V

3. Power consumption: ≤0.8W@12V

4. Peak current: 100mA

Others

1. Communication interface: RS-485

2. Dimensions: 50mm*34mm*41mm（L*W*H)

3. Enclosure material: PC/ABS/PMMA

4. Storage temperature: -30~75℃

5. Weight: 52g

6. Cable length: 70cm

1. Product wiki

2. Software: Arduino IDE

3. FAQ about LiDAR

1. TFmini-i LiDAR Laser Range Sensor (12m) x1
