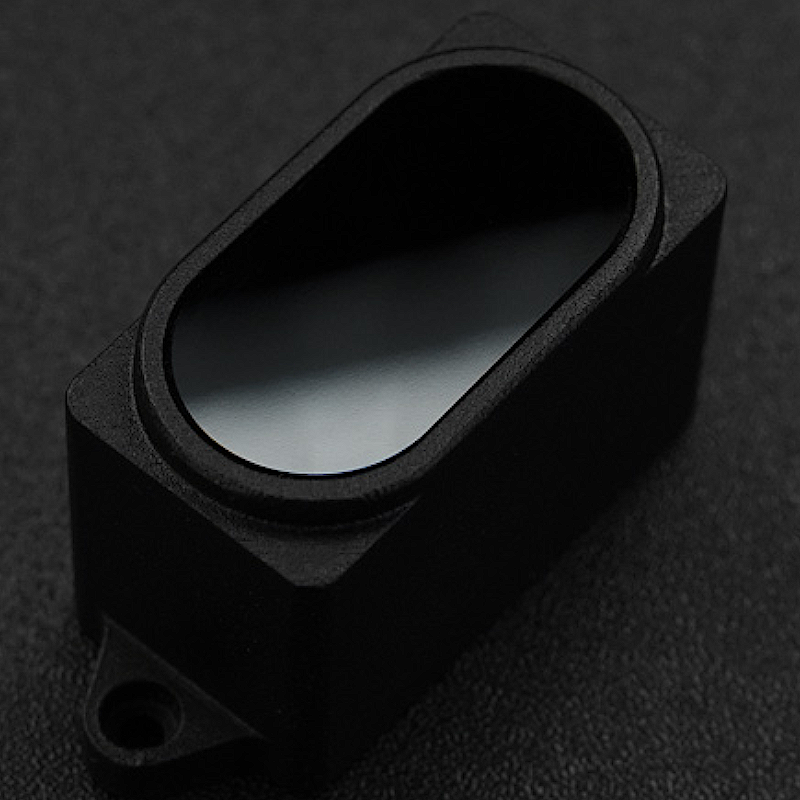

SDM15 ToF Single-Point Ranging LiDAR Sensor (15m, UART, Supporting ROS & ROS2) - DFRobot SEN0588

: SEN03071
€49.90
Tax included

This LIDAR is a laser distance sensor based on time-of-flight (ToF) technology. This sensor, although quite small, can measure distances between 50cm and 15m, which makes it very useful for use with drones, robots or even obstacle detection.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

The laser transmitter emits laser light at time t1. The laser collector collects the reflected laser distance at time t2 = (t2-t1)*light speed/2, because t2-t1 is the round-trip time from laser emission to reception.

The principle of ToF Single-Point Ranging LiDAR Sensor



SDM15 distance of 15 meters, making it capable of laser ranging in most indoor scenes.

SDM15 ToF Single-Point Ranging LiDAR Sensor distance of 15 meters



Sampling frequency 10Hz~ 1800Hz adjustable.

Sampling frequency 10Hz~ 1800Hz of SDM15 ToF Single-Point Ranging LiDAR Sensor



It can resist the strong light environment of 60klux and realize high-frequency and high-precision distance measurement indoors and outdoors.

SDM15 ToF Single-Point Ranging LiDAR Sensor resist the strong light environment



Fully compatible with ROS1 and ROS2 systems,providing two system SDK, and providing technical information.

SDM15 ToF Single-Point Ranging LiDAR Sensor compatible with ROS1 and ROS2 systems



The infrared linear array pulsed laser used in SDM15 can ensure the safety of humans and pets. Meets FDA Class 1 laser safety standards.

SDM15 ToF Single-Point Ranging LiDAR Sensor FDA Class 1 laser safety standards



It weighs only 15 grams, making it easy to install. It consumes less than 0.5W .In scenarios where battery-powered or low power consumption is required, it provides stable, precise, and highly sensitive distance measurements. Can be used for applications such as altitude control and terrain following in unmanned drones, obstacle avoidance in robots, and smart home systems.

SDM15 ToF Single-Point Ranging LiDAR Sensor Product Dimension Diagram

SDM15 Product Dimension Diagram



Features

  1. Measurement range indoors and outdoors extends up to 15m.

  2. Small blind zone of 50mm.

  3. Measurement frequency is adjustable, ranging from 1-18000Hz.

  4. Long Lifespan, 10000 hours.



Applications

  1. Altitude control and terrain following in unmanned drones

  2. Obstacle avoidance in robots

  3. Smart home systems.




Specification

  1. Measurement range: 0.05~15m (80% reflectivity indoors and outdoors)

  2. Measurement accuracy: ±2cm @ 2m, ±3% @ 2-15m

  3. Operating voltage: 4.8-5.2V

  4. Power consumption: ＜100mA @ 5V

  5. Communication interface: UART

  6. Wavelength: 905nm

  7. Measurement frequency: Adjustable from 10-1800Hz

  8. Ambient light immunity: 60klux

  9. Operating temperature: -10°C~50°C

  10. Storage temperature: -20°C~70°C

  11. Lifespan: 10000 hours

  12. Weight: 15g



Documents



Shipping List

  1. SDM15 ToF Single-Point Ranging LiDAR Sensor (0.05-15m) x1

SEN03071
