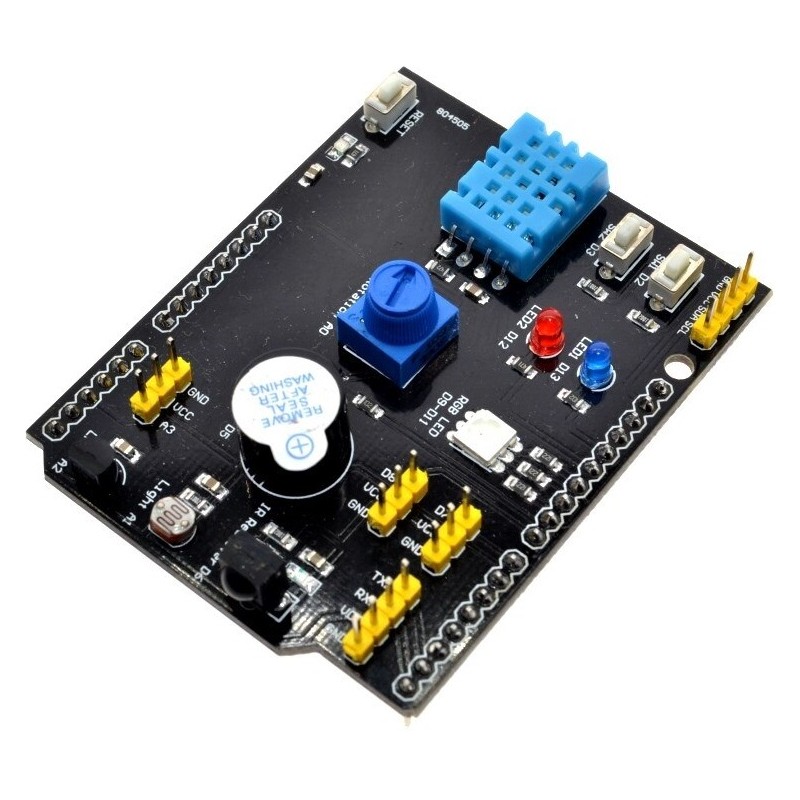

Multifunction Shield DHT11 LM35 LDR Buzzer for Arduino UNO / Wemos D1 R32

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The board is designed for beginners in Arduino, with various components available that makes you build more than 10 projects easily. You won’t have to solder or connect anything at all, just plug it in a shield and start coming up with various simple examples rather than dealing with cables, sensors and breadboard. Next to each component you can see the digital on analog pin it is connected to. Also there are couple of digital pins and one analog pin available for other projects. This shield can be fully compatible with the Arduino UNO R3 and it will never short circuit with the Arduino UNO USB interface, so it is very safe.

Functions:

• 2-way button module
• 2-way LED module
• Full Color LED Module
• IR receiver module
• Brightness sensor module
• LM35D temperature sensor module
• Passive buzzer module
• Rotary potentiometer module
• DHT11 temperature and humidity sensor module
• One I2C interface (A4 SDA, A5 SCL)
• One TTL serial port
• Two channel digital ports (D7, D8)
• One channel analog port (A3)
• Reset button

Features:

• Fully compatible with UNO R3 interface
• Providing beginners basic experimental module
• A board integrates various modules function
• No soldering, you can download the program directly to complete the experiment
• Provide all the module code library files, all tested and can be used directly
• Set aside expansion port, you can complete other modules experiment

Package included:

1 x Multifunction Expansion Board
