Infrared Reflective Sensor

: SEN03018
€4.50
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



DESCRIPTION

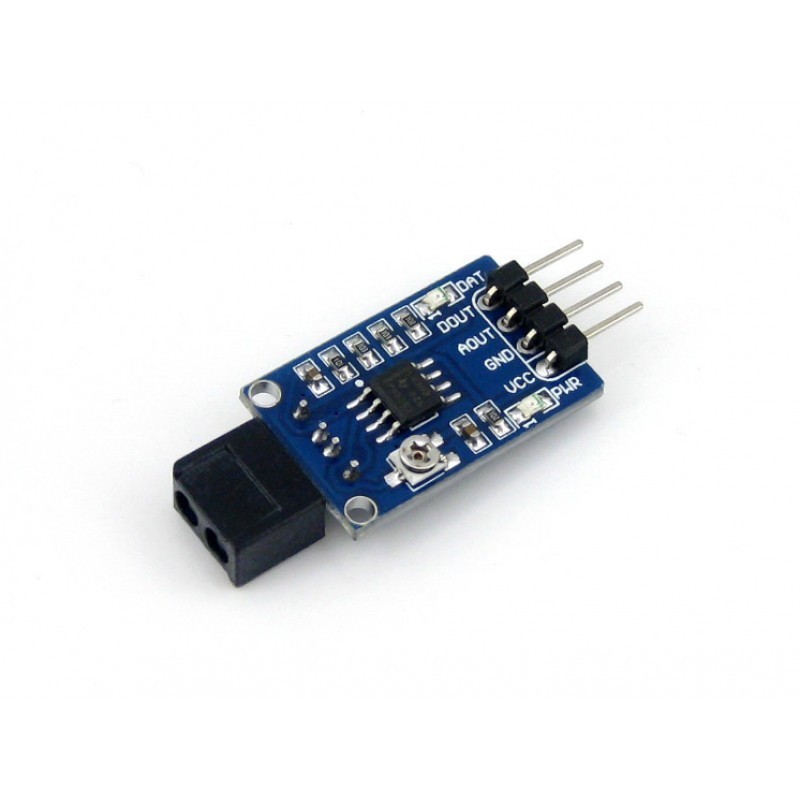

Infrared Reflective Sensor


Overview

  • Reflective infrared Transceiver
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator



Specifications

  • Power: 3.0V ~ 5.3V
  • Dimension: 25mm * 15.9mm
  • Mounting holes size: 2.0mm



Applications

  • Robot path tracking
  • Obstacle-avoiding car
  • Pipeline counter



How to Use

In the case of working with a MCU:

  • VCC ↔ 3.0V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/Infrared_Reflective_Sensor



PACKAGE CONTENT

Weight: 0.005 kg

  • Infrared Reflective Sensor × 1
  • 4-pin custom connector jumper wire × 1
