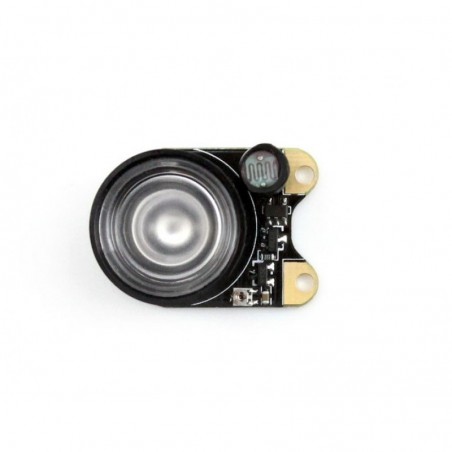

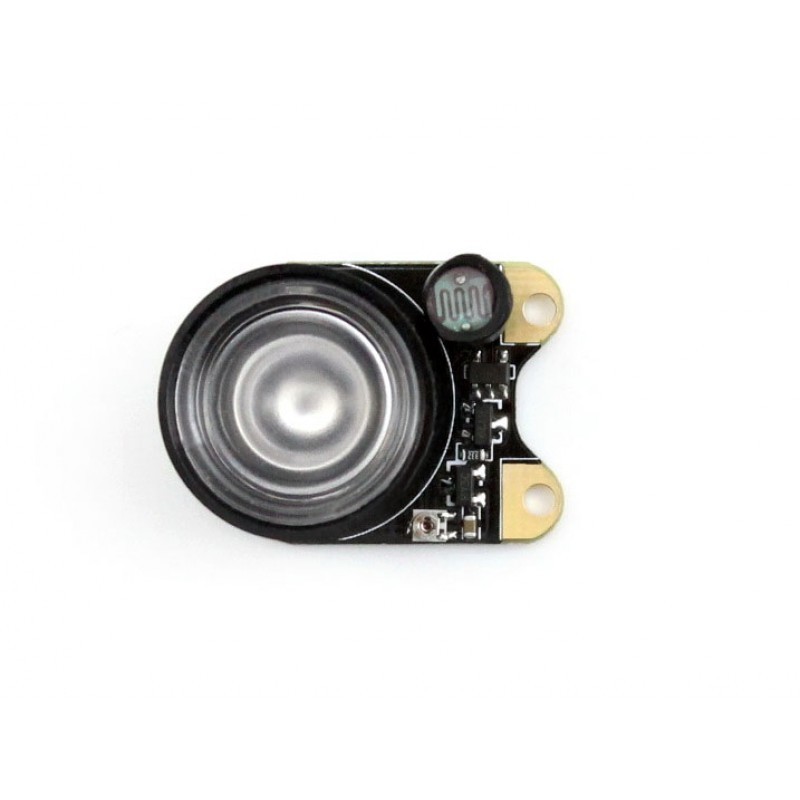

Infrared LED Board (B), Wide Field of View

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

• 3W high-power 850 infrared LED
• Onboard photoresistor, the ambient light detector
• Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED
• Allows adding night vision function to cameras which feature embedded infrared filter :
  • 100 degree field of view, two pieces of LED is required to get wider field of view
  • Supported devices : RPi Camera (E), RPi Camera (F), RPi Camera (H)

How to Use

1. Connect the Infrared LED Board to the camera PCB by screws
   • The screw holes are used for both attachment and power supply
2. Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically
   • When ambient light is lower than threshold value, the infrared LED is on, vice versa
