Description

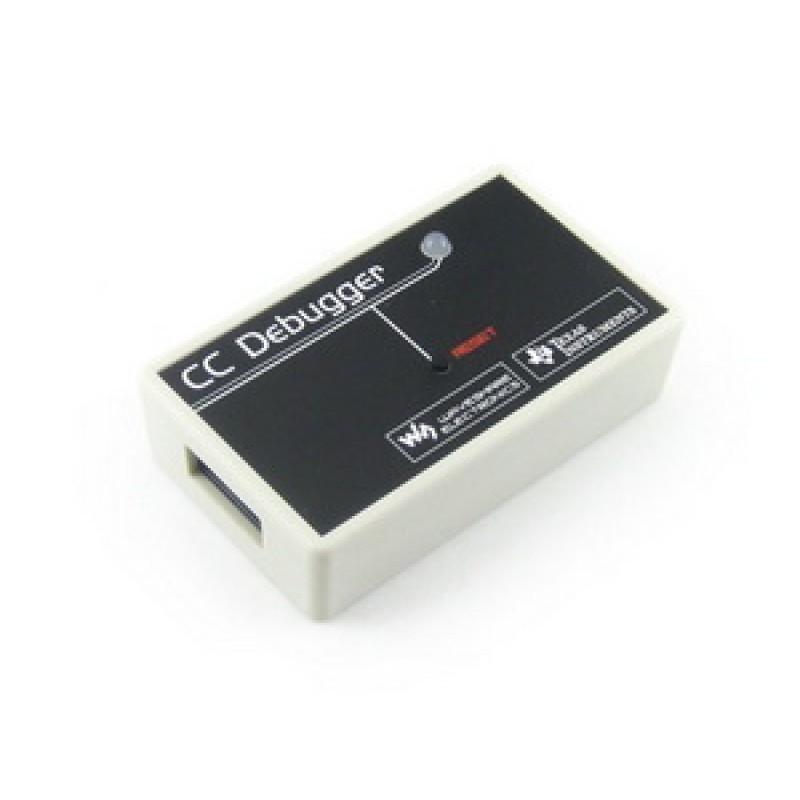

The CC Debugger is primarily used for debugging and programming the flash on CCxxxx 8051-based System-on-Chip (SoC) devices from Texas Instruments. CC Debugger also supports CCxxxx RF transceivers. In addition, CC Debugger is used for configuring the CC85xx devices with PurePath Wireless Configurator.

---

Key Features

• Performance
  • Compatible with the original TI CC Debugger
  • Supported Operating Systems: Windows 2000, Windows xp sp2/sp3, Windows Vista 32bit, Windows 7 32bit
  • Target voltage: 1.2V～3.6V
  • Capable of powering the target board from the debugger
  • Operating temperature: 0℃～85℃
• Supported Software
  • IAR Embedded Workbench For C8051
  • SmartRF Flash Programmer
  • SmartRF Studio
  • SmartRF Packet Sniffer
  • PurePath Wireless Configurator
• Connects to PC
  • Computer connection via USB interface
• Connects to target board
  • Target board connection via 10-pin IDC connector (2x5 2.54mm pitch). The figure below shows the header pinout:

---

Supported Devices

• Programming and debugging the following 8051-based system-on-chips from Texas Instruments:
  • CC1110, CC1111
  • CC2430, CC2431
  • CC2510, CC2511
  • CC2530, CC2531, CC2533
  • CC2540, CC2541
  • CC2543, CC2544, CC2545
• Controlling the following transceivers from SmartRF Studio:
  • CC1120, CC1121, CC1125, CC1175
  • CC1101, CC110L, CC113L, CC115L
  • CC2520
• Configuring the CC85xx devices with PurePath Wireless Configurator:
  • CC8520, CC8521
  • CC8530, CC8531

---

LED Status

• OFF: The debugger has no power or there is no valid firmware on the debugger.
• AMBER (BOTH LEDS ON): The debugger is powered, but there is no valid firmware.
• RED LED BLINKING: The Debugger is in Boot Recovery Mode.
• RED LED ON: No device detected. This might be due to old firmware on the CC Debugger, or a problem with the hardware connection (make sure the target board is properly powered and connected correctly).
• GREEN LED ON: The target device has been properly detected. It is possible to start programming/debugging.

---

Downloads

Development resources:user manual, schematic, firmware, software, etc.

Wiki: www.waveshare.com/wiki/CC_Debugger

Package Content

Weight: 0.121 kg

1. CC Debugger × 1
2. USB cable × 1
3. 10-pin flat cable × 1
